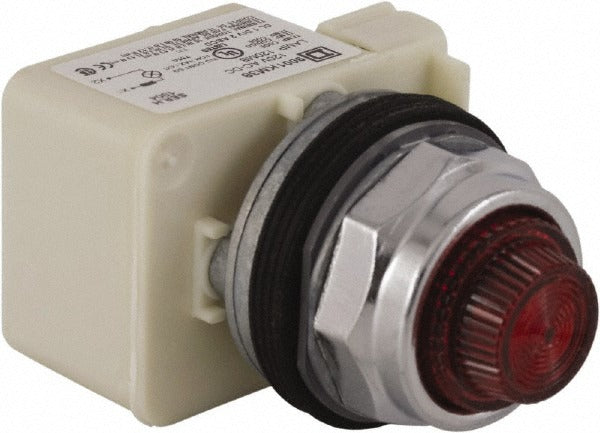

Schneider Electric 9001KP38R31 Pilot Light 120V Red

Product Description

The SCHNEIDER ELECTRIC 9001KP38R31 is an incandescent pilot light rated at 120 volts with a red round lens, designed for industrial and commercial control panel applications. It uses a screw clamp connector for secure wiring termination and features a round lens profile that fits standard 30mm pilot light cutouts. This indicator light signals operational status in machine control, motor starter panels, and automated equipment enclosures. Electricians and panel builders install this type of device during control panel assembly or as a direct replacement when an existing pilot light fails. It meets a broad set of international standards, making it suitable for domestic and export-compliant panel builds.

This pilot light is suited for use in NEMA-rated enclosures across a wide range of ratings including NEMA 1, 2, 3, 3R, 4, 6, 12, and 13. It is appropriate for residential, light commercial, and heavy industrial control applications where a 120-volt incandescent indicator is specified. The screw clamp termination simplifies wiring in both new installations and retrofit scenarios, reducing installation time compared to soldered or crimped alternatives.

Key Features

• 120-volt incandescent lamp type for use in standard control voltage circuits
• Red round lens for clear, color-coded status indication
• Screw clamp connector for reliable, tool-assisted wire termination
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosure ratings
• RoHS compliant construction
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, and JIS C 852 standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 120-volt industrial control panels and equipment requiring a round-lens incandescent indicator with screw clamp termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before removing an existing pilot light or installing this unit. Confirm the panel supply voltage matches the 120-volt rating of this device before energizing. Use appropriately rated wire and torque the screw clamp terminals to the enclosure manufacturer's specified value for the wire gauge used.
