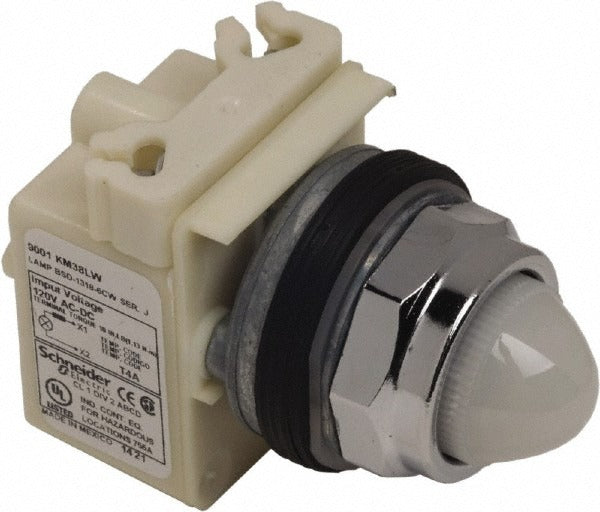

Schneider Electric 9001KP38LWW9 Led Pilot Light 120V

Product Description

The SCHNEIDER ELECTRIC 9001KP38LWW9 is a 120-volt LED pilot light designed for panel and machine control applications. It features a round white lens and a screw clamp connector, making termination straightforward during installation or replacement. The LED lamp type delivers long service life and low power draw compared to incandescent equivalents. At 2.2 inches wide and 3.7 inches in length, it fits standard pilot light cutouts in control panels. Electricians and controls technicians install this indicator light to provide clear visual status feedback on industrial machinery, motor control centers, and distribution equipment.

This pilot light is suited for both commercial and industrial environments. Its NEMA 1/2/3/3R/4/6/12/13 ratings cover a broad range of enclosure types, from indoor general-purpose panels to watertight and oil-tight enclosures. It is appropriate for use on machine tools, control stations, and process equipment where a reliable 120-volt panel indicator is required. The screw clamp connector accommodates quick field wiring without additional tooling.

Key Features

• LED lamp type for extended service life and reduced maintenance
• Round white lens for clear, wide-angle visual indication
• Screw clamp connector for reliable field termination
• NEMA 1/2/3/3R/4/6/12/13 rated for versatile enclosure compatibility
• RoHS compliant construction
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, and JIS C 852 standards

Compatibility

Designed as an OEM-style replacement or direct-fit pilot light for 120-volt control panel applications requiring a standard round-lens indicator with screw clamp termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel or control circuit before removing or installing the pilot light. Verify supply voltage matches the 120-volt rating before energizing. Screw clamp connections should be tightened securely to prevent loose terminations under vibration.
