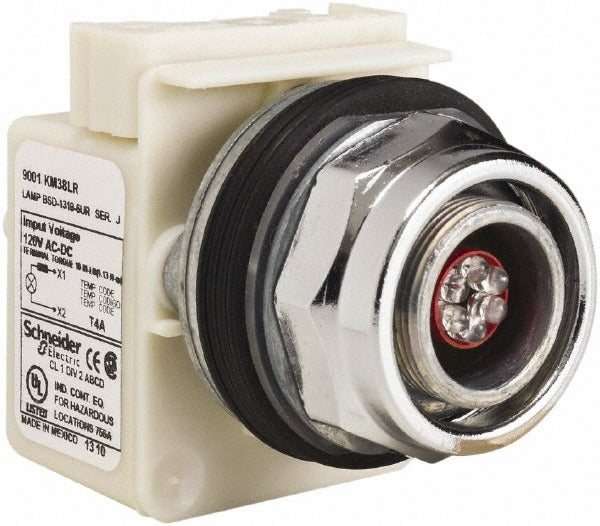

Schneider Electric 9001KP38LR 120V Led Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001KP38LR is a 120-volt LED indicating light with a screw clamp connector, designed for use in industrial and commercial control panel applications. This pilot light provides a clear visual status indication for equipment, machinery, and process control systems. The LED lamp type delivers long service life and low power consumption compared to incandescent alternatives. The screw clamp connector simplifies wiring termination and ensures a secure, vibration-resistant connection. Licensed electricians and industrial maintenance technicians install this unit as part of pushbutton and operator interface assemblies on control enclosures.

This indicating light is suited for use in a wide range of NEMA-rated enclosures including NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 environments, covering indoor, outdoor, watertight, and dust-tight installations. It is appropriate for residential, commercial, and industrial control panel builds where a reliable 120-volt status light is required. The unit is CE marked and UL Listed, making it suitable for use on job sites that require code-compliant components.

Key Features

• LED lamp type for long service life and low energy draw versus incandescent bulbs
• Screw clamp connector for fast, secure wiring termination without soldering
• Rated for NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosure types
• UL Listed under File E42259, CCN NKCR
• CE marked and CSA certified to LR25490 Class 3211 03
• Compact footprint fits standard 30 mm operator interface cutouts in control panels

Compatibility

Designed as an OEM-style replacement or new-installation indicating light for control panels and operator interface assemblies requiring a 120-volt LED pilot light with screw clamp termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel circuit before installing or replacing this indicating light. Verify the panel supply voltage matches the 120-volt rating of this unit before making wiring connections. Do not exceed the rated voltage or attempt to use this light with incompatible lamp bases or connector types.
