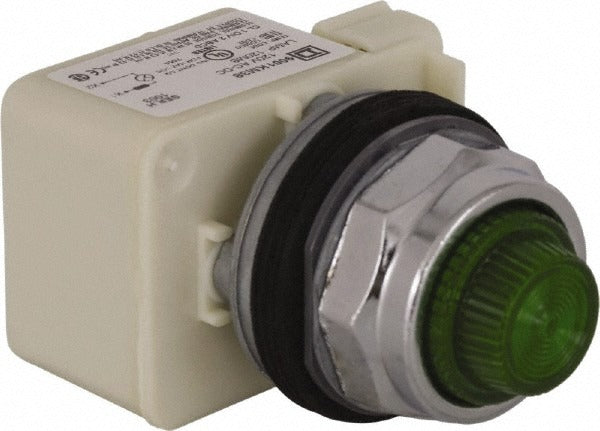

Schneider Electric 9001KP38G31 Pilot Light 120V Green

Product Description

The SCHNEIDER ELECTRIC 9001KP38G31 is a 120-volt incandescent pilot light designed for industrial and commercial control panel applications. It features a round green lens and a screw clamp connector for secure wiring termination. The incandescent lamp type provides a familiar, visible status indication across a wide viewing angle. This pilot light is built to meet multiple international and domestic standards, making it suitable for demanding electrical environments. Licensed electricians and control panel builders typically install this device during panel assembly or field service.

The 9001KP38G31 is used in industrial control panels, machine tool enclosures, and commercial electrical equipment where a 120-volt status indicator is required. The green lens signals normal operation or a run condition in most standard control circuit conventions. Its screw clamp termination suits both new installations and replacement service in existing panels. This unit is rated for NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosures, covering a broad range of indoor and outdoor industrial applications.

Key Features

• 120-volt incandescent lamp for direct connection to standard control circuit voltage
• Round green lens for clear run or normal-status indication
• Screw clamp connector for reliable, tool-secured wiring termination
• Rated for NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosure types
• RoHS compliant construction
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, and JIS C 852 standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 120-volt industrial control panels and machine tool enclosures requiring a round-lens incandescent indicator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC Article 409 for industrial control panels. De-energize and lock out the control panel before beginning any wiring work. Secure all conductors to the screw clamp terminals with an appropriate flathead screwdriver and verify torque is sufficient to prevent loose connections without over-tightening. Confirm enclosure rating compatibility before mounting in outdoor or washdown environments.
