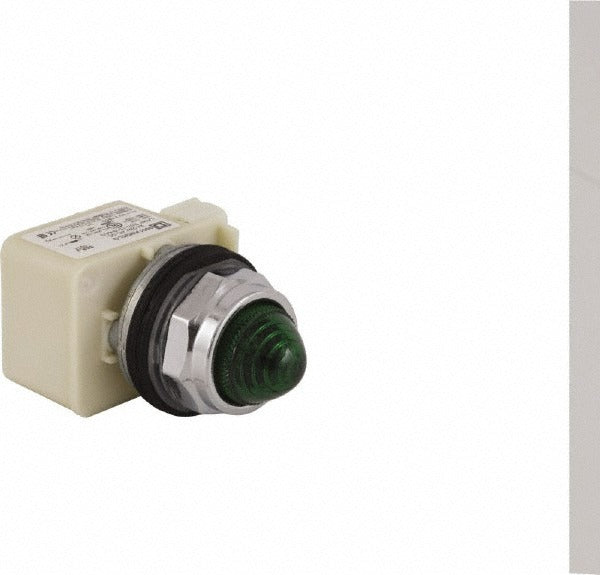

Schneider Electric 9001KP35LGG9 Led Pilot Light 24V Green

Product Description

The SCHNEIDER ELECTRIC 9001KP35LGG9 is a 24-volt LED pilot light designed for panel and control enclosure applications. It features a green round lens and a screw clamp connector for reliable termination. The LED lamp type delivers long service life and low power consumption compared to incandescent indicators. At 0.32 pounds and compact in overall size, this pilot light suits tight panel layouts. It meets a broad set of electrical standards including UL 508, CSA C22.2 No. 14, and NEMA enclosure ratings 1 through 13, making it appropriate for a wide range of industrial and commercial control panel builds.

This pilot light is intended for use in industrial control panels, machine control systems, and commercial electrical enclosures where a visual status indicator is required. The 24-volt operating voltage is common in low-voltage control circuits found in HVAC control panels, motor starters, and automated equipment. Electricians and controls technicians install this type of indicator to signal run, fault, or power-on states at the panel face. The green lens color is the standard convention for indicating normal or running status in most control panel layouts.

Key Features

• 24-volt operating voltage suits standard low-voltage control circuits
• Green round lens provides clear visual status indication at the panel face
• LED lamp type offers extended service life over incandescent alternatives
• Screw clamp connector allows secure, tool-assisted wire termination
• Meets UL 508, CSA C22.2 No. 14, NEMA 1/2/3/3R/4/6/12/13, RoHS, and IEC 60947 series standards
• Compact form factor at 1.8 inches height, 2.2 inches width, and 3.7 inches length

Compatibility

Designed as an OEM-style replacement indicator for industrial and commercial control panels requiring a 24-volt LED pilot light with a round lens and screw clamp termination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the control panel and verify zero voltage with a meter before handling any wiring or removing an existing indicator. Screw clamp connectors require a small flathead screwdriver for proper termination — ensure conductors are fully seated and clamps are tightened to prevent intermittent contact. Confirm the panel enclosure NEMA rating matches the environment before installation.
