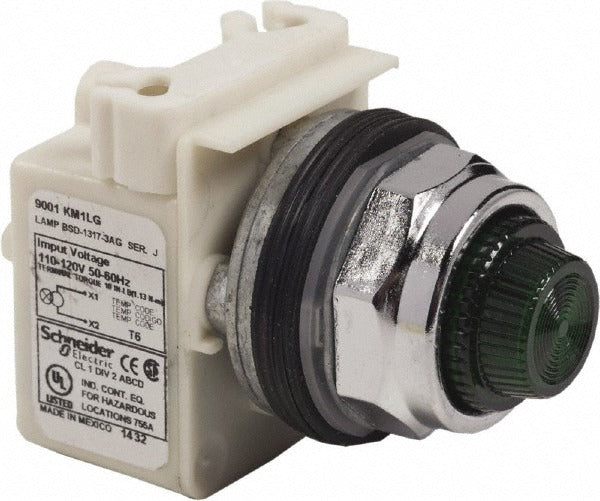

Schneider Electric 9001KP1LGG31 Led Pilot Light 120V Green

Product Description

The SCHNEIDER ELECTRIC 9001KP1LGG31 is a 120 VAC LED pilot light designed for panel and enclosure indicator applications in industrial and commercial electrical systems. It features a green round lens and a screw clamp connector for secure, tool-assisted termination. The LED lamp type provides long service life and low power draw compared to incandescent alternatives. Rated for a wide range of NEMA enclosure types, this pilot light is suited for harsh or demanding environments where ingress protection matters. Licensed electricians and panel builders install this indicator on machine control panels, motor starters, and distribution equipment.

This pilot light fits residential, commercial, and light industrial control panel applications where a 120 VAC status indicator is required. The screw clamp connector makes it appropriate for installations that demand a reliable mechanical termination without solder or push-in connections. It is commonly specified in motor control centers, pump panels, HVAC equipment control panels, and automated machinery where a green run or power-on indicator is standard. The NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings make it suitable for both indoor and outdoor enclosures.

Key Features

• LED lamp type for extended service life and reduced maintenance
• 120 VAC operating voltage for direct connection to standard control circuits
• Green round lens for clear visual status indication
• Screw clamp connector for secure, vibration-resistant termination
• NEMA 1/2/3/3R/4/6/12/13 rated for indoor and outdoor enclosure use
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, and JIS C 852 standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 120 VAC control panel circuits requiring a green LED indicator with screw clamp termination and NEMA-rated enclosure compatibility.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements for control panel and indicator wiring. De-energize the panel and verify absence of voltage before installing or replacing the pilot light. Screw clamp terminals require a small flat-blade screwdriver for proper conductor seating. Do not exceed the rated voltage or use with lamp types other than the integrated LED.
