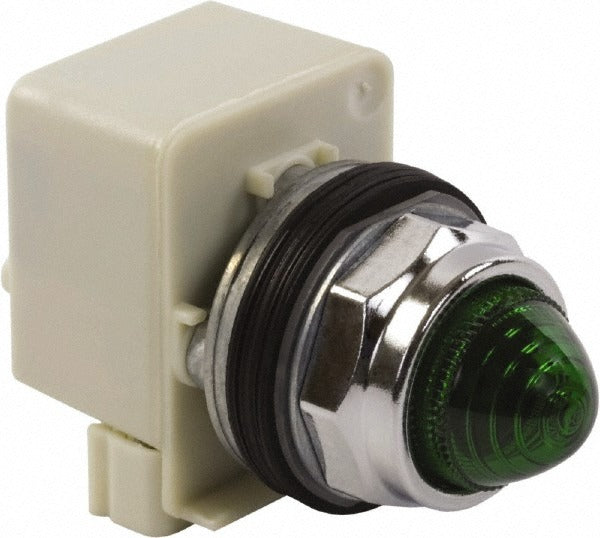

Schneider Electric 9001KP1G9 Pilot Light 120V Green

Product Description

The SCHNEIDER ELECTRIC 9001KP1G9 is a 120-volt incandescent pilot light with a green round lens and screw clamp connector. It is designed for panel-mount indicator applications in industrial and commercial control systems, providing a clear visual status indication at the control enclosure. Licensed electricians and industrial maintenance technicians install this type of pilot light in motor control centers, machine control panels, and operator interface stations. The round lens profile and screw clamp termination simplify wiring during panel assembly or field replacement.

This pilot light is suited for use in both indoor and outdoor control enclosures rated NEMA 1, 2, 3, 3R, 4, 6, 12, and 13. It is a direct-mount indicator intended for 120-volt control circuits in residential, commercial, or light industrial applications where a green status light is required. The incandescent lamp type provides a familiar, broad-angle glow that remains visible across the panel face.

Key Features

• 120-volt incandescent lamp type for direct connection to standard control circuit voltage
• Green round lens for clear go or run status indication
• Screw clamp connector for secure, tool-assisted field wiring
• NEMA 1/2/3/3R/4/6/12/13 enclosure ratings for broad installation environments
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, and RoHS requirements

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 120-volt industrial and commercial control panels requiring a NEMA-rated incandescent indicator.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the control panel before removing an existing pilot light or making wiring connections. Use the screw clamp connector to secure conductors firmly and verify torque with the panel or device manufacturer guidelines. Confirm the enclosure NEMA rating matches the installation environment before finalizing the mount.
