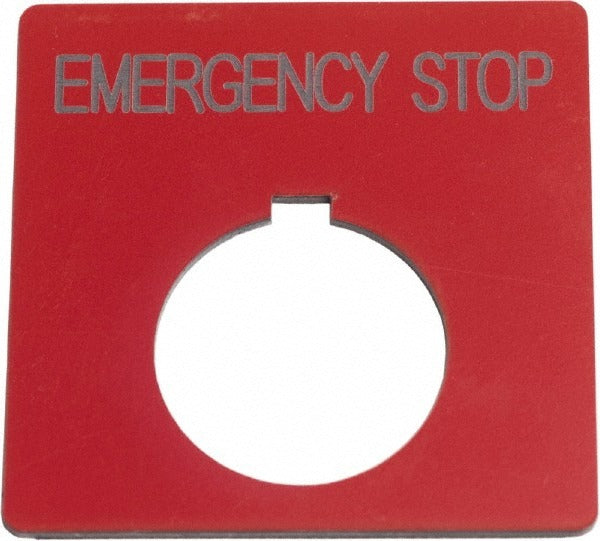

Schneider Electric 9001KN705RP Emergency Stop Legend Plate

Product Description

The SCHNEIDER ELECTRIC 9001KN705RP is a square plastic legend plate marked Emergency Stop, designed for use on industrial pushbutton and pilot light assemblies. It features a red background with black lettering, giving operators an immediate visual cue for emergency shutoff controls. The plate measures 2.5 inches square with a 1.2-inch hole diameter sized to fit 30mm mounting formats. At 0.01 pounds, it is a lightweight, direct-install accessory that helps label control station components in compliance with machine safety marking standards. Electricians and control panel technicians install this plate as part of a complete operator interface assembly.

This legend plate is suited for use in industrial control panels, machine tool stations, and process equipment enclosures where clear operator labeling is required. It fits into existing pushbutton and pilot light operator assemblies on new builds or as a replacement when existing labels become damaged, faded, or illegible. The red Emergency Stop designation makes it appropriate for safety-critical control points in both light manufacturing and heavy industrial environments.

Key Features

• Red background with black Emergency Stop lettering for high-contrast safety identification
• Square format measuring 2.5 inches on each side for standard panel cutout alignment
• 1.2-inch hole diameter compatible with 30mm pushbutton and pilot light operators
• Plastic construction keeps weight minimal at 0.01 pounds for easy handling and installation
• Sold individually, allowing single-unit replacement without excess inventory

Compatibility

Designed for use with Harmony 9001K/SK/KX 30mm Pushbuttons and Pilot Lights.

Installation Notes

Installation is performed by qualified electricians or control panel technicians. De-energize the control panel and follow lockout/tagout procedures before accessing any operator device or legend plate assembly. The legend plate typically snaps or slides into the operator legend frame without special tooling. Verify the hole diameter and overall plate dimensions match the existing operator assembly before installation.
