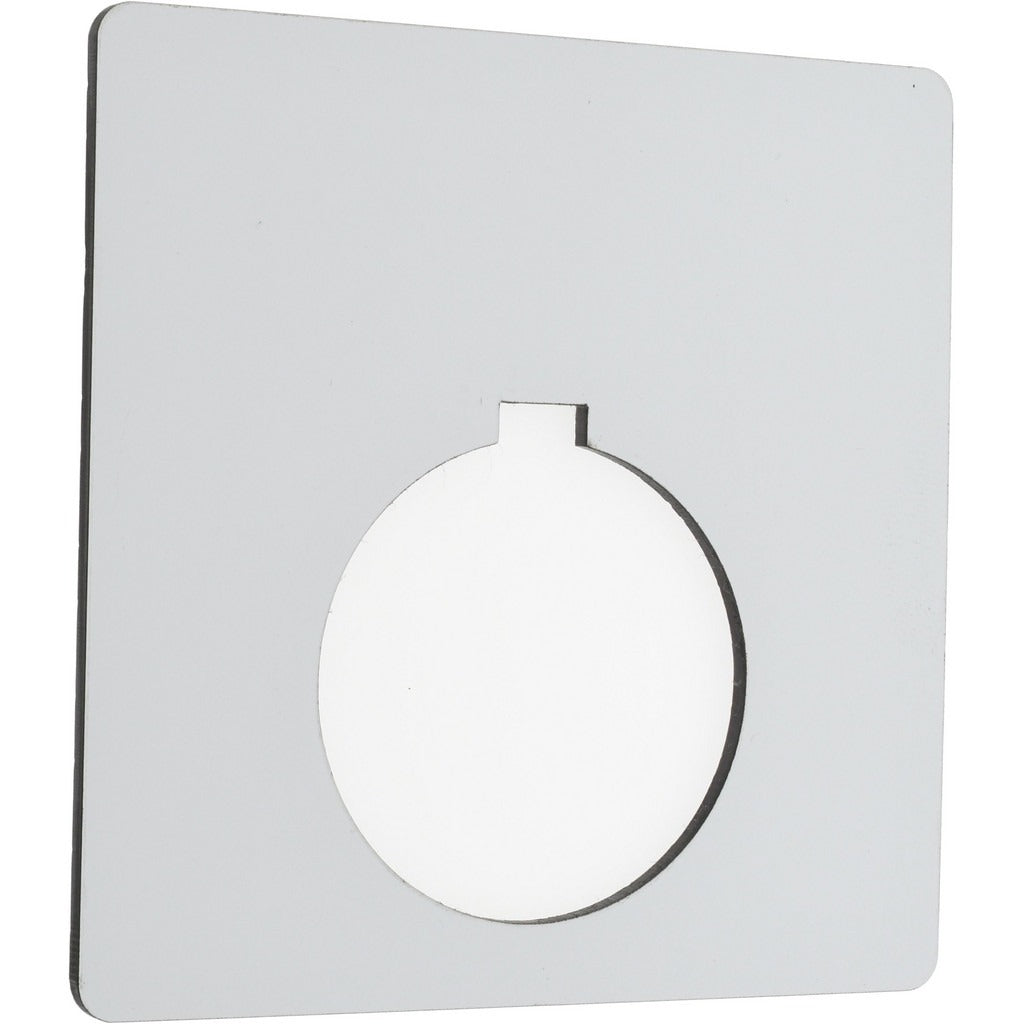

Schneider Electric 9001KN700WP Square Plastic Legend Plate

Product Description

The SCHNEIDER ELECTRIC 9001KN700WP is a blank square plastic legend plate designed for use with 30mm industrial pushbuttons and pilot lights. It features a white background with no printed text, giving technicians a clean surface for custom labeling or use in applications where no legend marking is required. The plate ships as a single unit and mounts to compatible 30mm operator devices with a 1.2-inch hole diameter. At 2.5 inches square and weighing only 0.02 pounds, it is a lightweight, low-profile component suited to panel-building and control-station maintenance work.

This legend plate is intended for use in industrial control panels, machine operator stations, and process control enclosures where 30mm pushbutton or pilot light operators are installed. The blank white face is appropriate when a standard labeled plate is unavailable or when a site-specific custom label will be applied in the field. Electricians and panel builders working on operator interface stations are the typical installers. The 2.5-inch square format fits flush against standard control panel faceplates.

Key Features

• Blank white background with black letter color field — no pre-printed text
• Square shape, 2.5 inches x 2.5 inches overall
• 1.2-inch hole diameter for standard 30mm operator cutouts
• Compatible with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights
• Lightweight plastic construction at 0.02 pounds
• Single-piece packaging — sold individually

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights as stated by the manufacturer.

Installation Notes

Installation is performed by a licensed electrician or qualified panel builder. De-energize the control panel and verify the absence of voltage before removing or replacing legend plates on live operator stations. No special tools are required beyond standard panel-building hand tools. Ensure the operator device cutout diameter matches the 1.2-inch hole specification before installation.
