Schneider Electric 9001KN345 Aluminum Legend Plate

Product Description

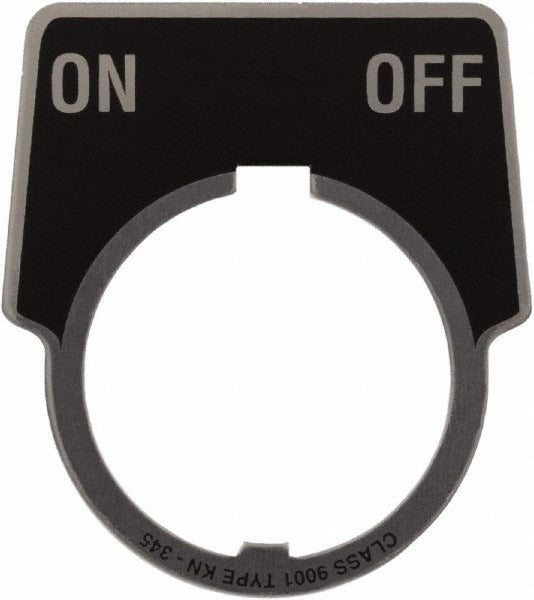

The SCHNEIDER ELECTRIC 9001KN345 is an aluminum legend plate marked On-Off with a black background, designed for use on 30mm selector switches and selector pushbuttons. Legend plates serve as identification markers on control panels, giving operators a clear visual reference for switch function and position. This plate is 1.75 inches wide and constructed from aluminum, providing durability in industrial environments. It installs into standard 30mm cutouts and is suited for panel builders, maintenance electricians, and control system integrators working with operator interface devices.

This legend plate is intended for industrial and commercial control panel applications where clear operator labeling is required. It fits selector switches and selector pushbuttons in the Harmony 9001K, 9001SK, and 9001KX series from Schneider Electric. Typical installations include motor control centers, machine control panels, and operator workstations where On-Off position labeling is needed at the switch location.

Key Features

• On-Off legend marking for clear operator identification at the switch
• Aluminum construction for durability in industrial panel environments
• Black background provides high contrast for legend text readability
• Fits standard 30mm hole diameter cutouts
• 1.75 inches overall width for compatibility with 30mm device footprints
• Single-piece replacement component, sold individually

Compatibility

Designed for use with Harmony 9001K, 9001SK, and 9001KX series 30mm selector switches and selector pushbuttons from Schneider Electric.

Installation Notes

Legend plates are installed by electricians or panel builders during control panel assembly or legend replacement service. Always de-energize the control panel and follow lockout/tagout procedures before servicing any operator interface components. Verify the existing switch cutout matches the 30mm hole diameter before installation. Refer to applicable NEC and equipment manufacturer guidelines for panel labeling requirements.
