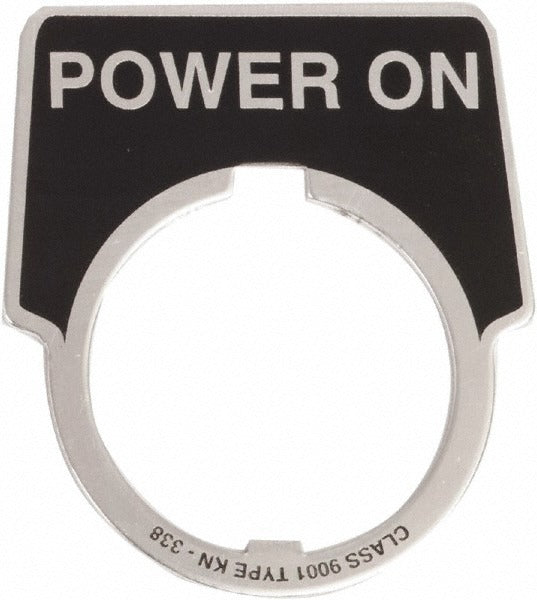

Schneider Electric 9001KN338 Aluminum Legend Plate

Product Description

The SCHNEIDER ELECTRIC 9001KN338 is an aluminum legend plate marked with a Power On designation, designed for use with 30mm pushbutton and pilot light operator stations. It features a black background with engraved or printed white lettering to provide clear operator identification at control panels and machine interfaces. The plate measures 1.75 inches wide and seats into a 30mm mounting hole, making it a direct-fit component for standard 30mm control devices. Electricians and controls technicians install these plates to label operator controls in industrial and commercial electrical enclosures. The lightweight aluminum construction keeps the overall assembly weight minimal at 0.01 pounds.

This legend plate is suited for industrial control panels, machine operator stations, and automation equipment where clear, durable control labeling is required. It is appropriate for both new panel builds and replacement applications where existing legend plates have become damaged, faded, or illegible. The part is sold individually, making it practical for single-station repairs or small panel modifications without the need to purchase in bulk.

Key Features

• Aluminum construction provides durability in industrial environments
• Black background with Power On marking for clear operator identification
• Fits 30mm hole diameter standard pushbutton and pilot light stations
• Overall width of 1.75 inches for standard 30mm operator footprint
• Lightweight at 0.01 pounds — adds negligible load to panel door or enclosure
• Sold as a single unit — suitable for individual station repairs

Compatibility

Designed for use with Harmony 9001K, 9001SK, and 9001KX series 30mm pushbuttons and pilot lights.

Installation Notes

Legend plates are installed by licensed electricians or qualified controls technicians during panel assembly or field service. Always de-energize the control panel and follow lockout/tagout procedures per NFPA 70E before accessing operator devices. The legend plate snaps or clips into the operator body according to the device manufacturer assembly sequence — do not force or pry the plate into position, as this may crack the aluminum or damage the operator bezel. Verify the correct hole diameter of the installed operator before ordering a replacement plate.
