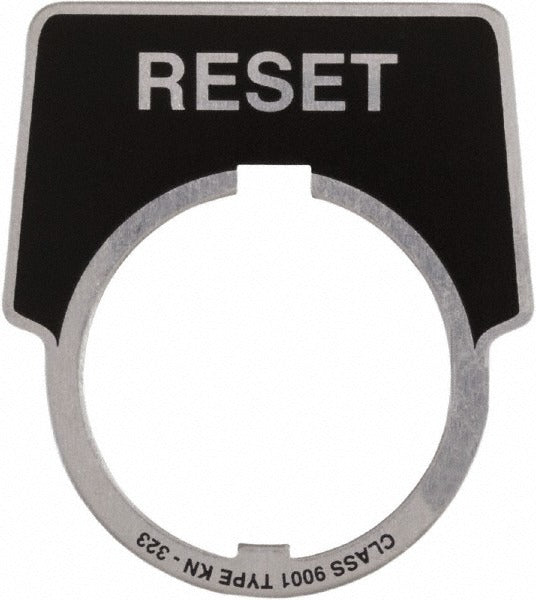

Schneider Electric 9001KN323 Aluminum Legend Plate Reset

Product Description

The SCHNEIDER ELECTRIC 9001KN323 is an aluminum legend plate marked "Reset" for use with 30mm pushbutton and pilot light assemblies in industrial control panels. The plate features a black background with white or contrasting legend text, providing clear operator identification at the point of control. Measuring 1.75 inches wide and sized for a 30mm hole diameter, it installs directly onto compatible 30mm operator devices. Electricians and control panel builders use this legend plate to label pushbuttons during panel construction, retrofit labeling projects, or replacement of damaged or faded plates.

This legend plate is suited for industrial and commercial control panel applications where 30mm operator devices are used. It is part of the Harmony 9001K/SK/KX series accessory family and is appropriate for machine control stations, motor control centers, and operator interface panels requiring clear, durable pushbutton identification. The aluminum construction provides resistance to wear and heat compared to paper or plastic alternatives, making it a practical choice for demanding plant floor environments.

Key Features

• Reset legend marking for clear operator identification at control stations
• Aluminum construction for durable, long-lasting labeling in industrial environments
• Black background provides high contrast for legend visibility
• 30mm hole diameter fits standard 30mm pushbutton and pilot light operators
• 1.75 inches overall width for proper coverage on compatible operator housings

Compatibility

Designed for use with Harmony 9001K/SK/KX 30mm pushbuttons and pilot lights as stated by the manufacturer.

Installation Notes

Installation is typically performed by a licensed electrician or qualified control panel technician. De-energize and lock out the control panel before disassembling any operator device or legend plate. The legend plate seats into the operator bezel or legend plate holder; no special tools are required beyond standard panel assembly practices. Verify the 30mm hole diameter of the operator device before installation to confirm fitment.
