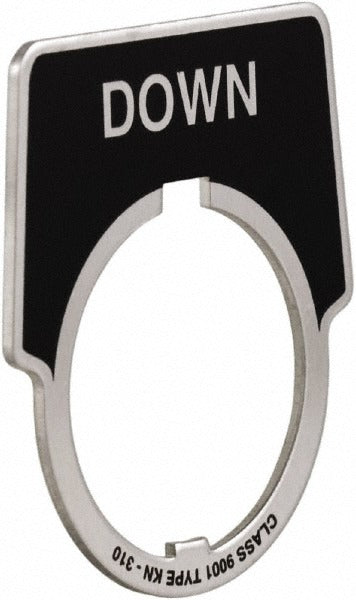

Schneider Electric 9001KN310 Aluminum Legend Plate Down

Product Description

The SCHNEIDER ELECTRIC 9001KN310 is an aluminum legend plate marked with a Down arrow designation, designed for use with 30mm industrial pushbutton and pilot light assemblies. The plate features a black background with clear legend markings and fits a 30mm hole diameter. At 1.75 inches wide, it provides a clean, professional label surface for operator control stations in industrial and commercial electrical panels. Installation is performed by licensed electricians or qualified control panel technicians during new builds, maintenance, or operator interface upgrades.

This legend plate is suited for industrial control panels, motor control centers, and operator interface stations where directional labeling is required. The Down marking identifies pushbutton or pilot light function at a glance, reducing operator error in multi-function control assemblies. It is a direct-fit accessory for Harmony 9001K series and related 30mm control devices. Both new-installation and retrofit applications are supported without modification.

Key Features

• Down legend marking for clear directional identification at control stations
• Aluminum construction for durability in industrial environments
• Black background with legible legend markings
• 30mm hole diameter for direct fitment to standard 30mm pushbutton and pilot light assemblies
• 1.75 inches overall width fits standard operator interface cutouts
• Sold individually, no minimum order required beyond single unit

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights.

Installation Notes

Installation should be performed by a qualified electrician or control panel technician. De-energize the control panel and follow applicable NFPA 70 (NEC) lockout/tagout procedures before servicing any operator interface device. Snap or secure the legend plate into the pushbutton or pilot light operator per the manufacturer assembly sequence. Verify the legend is fully seated and readable before restoring power.
