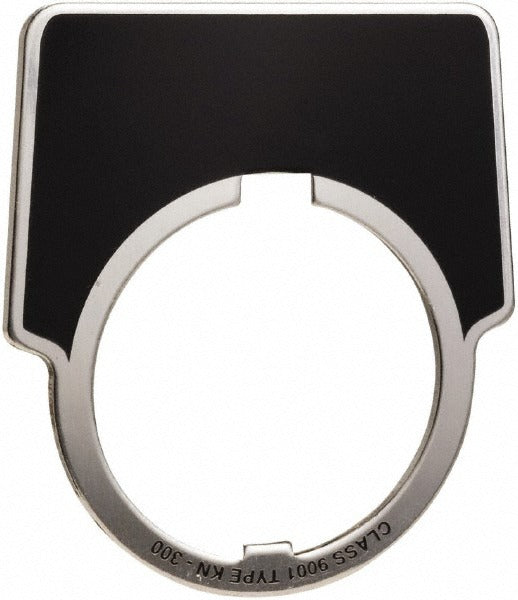

Schneider Electric 9001KN309 Aluminum Legend Plate

Product Description

The SCHNEIDER ELECTRIC 9001KN309 is an aluminum legend plate with an Open marking and black background, designed for use with 30mm pushbutton and pilot light assemblies. This legend plate slides into the label window of compatible operator devices to identify control station functions at a glance. At 1.75 inches wide and constructed from aluminum, it provides a durable, readable label surface that holds up in industrial panel environments. Electricians and control panel technicians install these plates during new builds or when relabeling existing control stations to maintain clear operator identification.

This legend plate is suited for industrial and commercial control panel applications where 30mm operator devices are mounted in enclosures, motor control centers, or machine control stations. It provides standard Open function labeling for pushbuttons or pilot lights in process control, motor starter, and machine safety circuits. The black background offers strong contrast for the engraved or printed legend text, making it easy to read in varied lighting conditions.

Key Features

• Open legend marking for standard control station identification
• Aluminum construction for durability in industrial panel environments
• Black background provides high contrast for easy readability
• Fits 30mm hole diameter operator devices
• Overall width of 1.75 inches fits standard 30mm device legend windows
• Lightweight at 0.01 pounds for easy handling and installation

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights.

Installation Notes

Legend plates are installed by licensed electricians or qualified control panel technicians as part of operator device assembly or panel labeling maintenance. De-energize the control circuit and follow lockout/tagout procedures before accessing any control station or panel. The plate typically slides or snaps into the legend holder on the operator device without special tools. Verify the correct legend marking is in place before returning the panel to service to ensure accurate operator identification.
