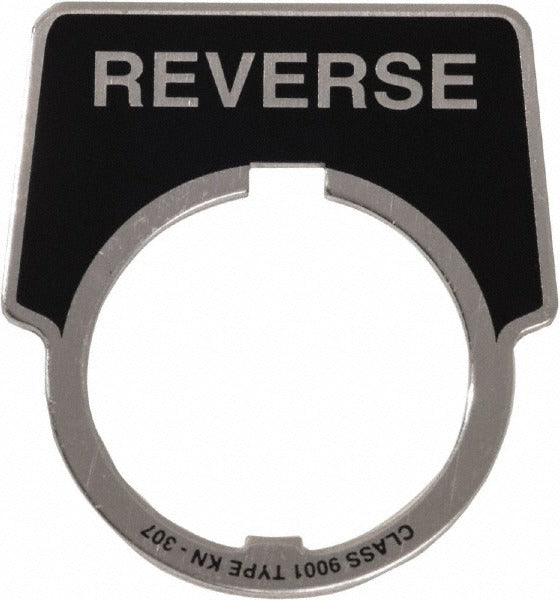

Schneider Electric 9001KN307 Aluminum Legend Plate

Product Description

The SCHNEIDER ELECTRIC 9001KN307 is an aluminum legend plate with a reverse black background, designed for use with 30mm pushbutton and pilot light assemblies in industrial control applications. The plate measures 1.75 inches wide and is constructed from aluminum, providing a durable labeling surface in panel or enclosure environments. It is sized for a 30mm hole diameter, making it a direct-fit component for compatible operator interface devices. Electricians and industrial control panel builders install this part during new panel assembly or as a replacement when existing legend plates are damaged or need relabeling.

This legend plate is intended for use in industrial and commercial electrical control panels where pushbutton stations and pilot lights require clear operator identification. The reverse black background provides contrast for engraved or printed markings, making it suitable for environments where legibility is critical. It is a single-piece component packaged individually and is appropriate for both new installations and maintenance replacement work on existing control stations.

Key Features

• Aluminum construction for durability in industrial panel environments
• Reverse black background for high-contrast legend markings
• Sized for 30mm hole diameter operator devices
• 1.75 inch overall width fits standard 30mm pushbutton and pilot light footprints
• Sold individually, no minimum beyond single unit

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights.

Installation Notes

Installation is performed by a licensed electrician or qualified control panel technician. De-energize the control panel and follow applicable NFPA 70E lockout/tagout procedures before servicing any operator interface components. The legend plate is a mechanical component that seats around the operator device body; no special tools are required beyond those needed to remove and reinstall the operator device. Verify hole diameter and overall width against the existing panel cutout before installation.
