Schneider Electric 9001KN300R Aluminum Legend Plate Blank Red

Product Description

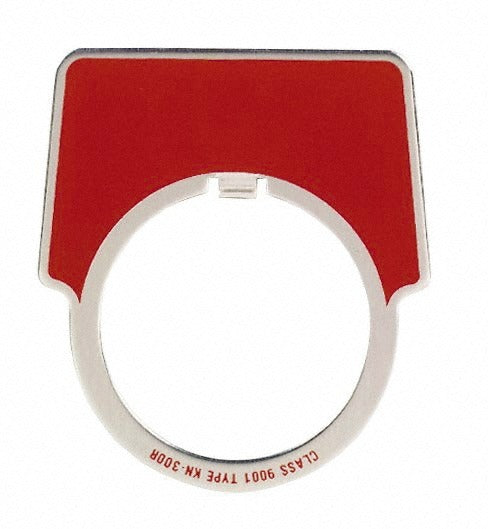

The SCHNEIDER ELECTRIC 9001KN300R is a rectangular aluminum legend plate with a blank red background, designed for use with 30mm control and signaling units. Measuring 44mm wide by 50mm high (approximately 1.73 inches wide by 1.97 inches high), this plate provides a durable, corrosion-resistant label surface for panel operators and industrial control stations. The blank face allows facility maintenance teams, electricians, and panel builders to apply custom labels or leave the surface unmarked during initial installation. Aluminum construction keeps the plate lightweight at 0.01 pounds while offering the rigidity needed for industrial enclosure environments.

This legend plate is intended for use in industrial control panels, machine operator stations, and process control cabinets where 30mm pushbutton or selector switch assemblies are installed. The red background communicates a visual designation that is commonly associated with stop, emergency, or caution functions in control panel layouts. Electricians and panel builders install these plates during enclosure assembly or during retrofits when relabeling control stations for updated equipment functions.

Key Features

• Blank face allows custom labeling or unmarked installation
• Red background for quick visual identification at the control station
• Aluminum construction provides durability and corrosion resistance
• Rectangular shape with 44mm width and 50mm height fits standard panel cutouts
• Designed for 30mm hole diameter mounting configurations
• Lightweight at 0.01 pounds for easy handling during panel assembly

Compatibility

Designed for use with Harmony 9001K 30mm Control and Signaling Units.

Installation Notes

Installation is performed by licensed electricians or qualified panel builders during control enclosure assembly or maintenance. Always de-energize the control panel and follow applicable NFPA 70 (NEC) lockout/tagout procedures before servicing any control station components. The legend plate snaps or clips into the operator assembly according to the host unit mounting requirements. Do not force the plate into position, as this may damage the aluminum face or the surrounding operator frame.
