Schneider Electric 9001KN262 Legend Plate 30mm

Product Description

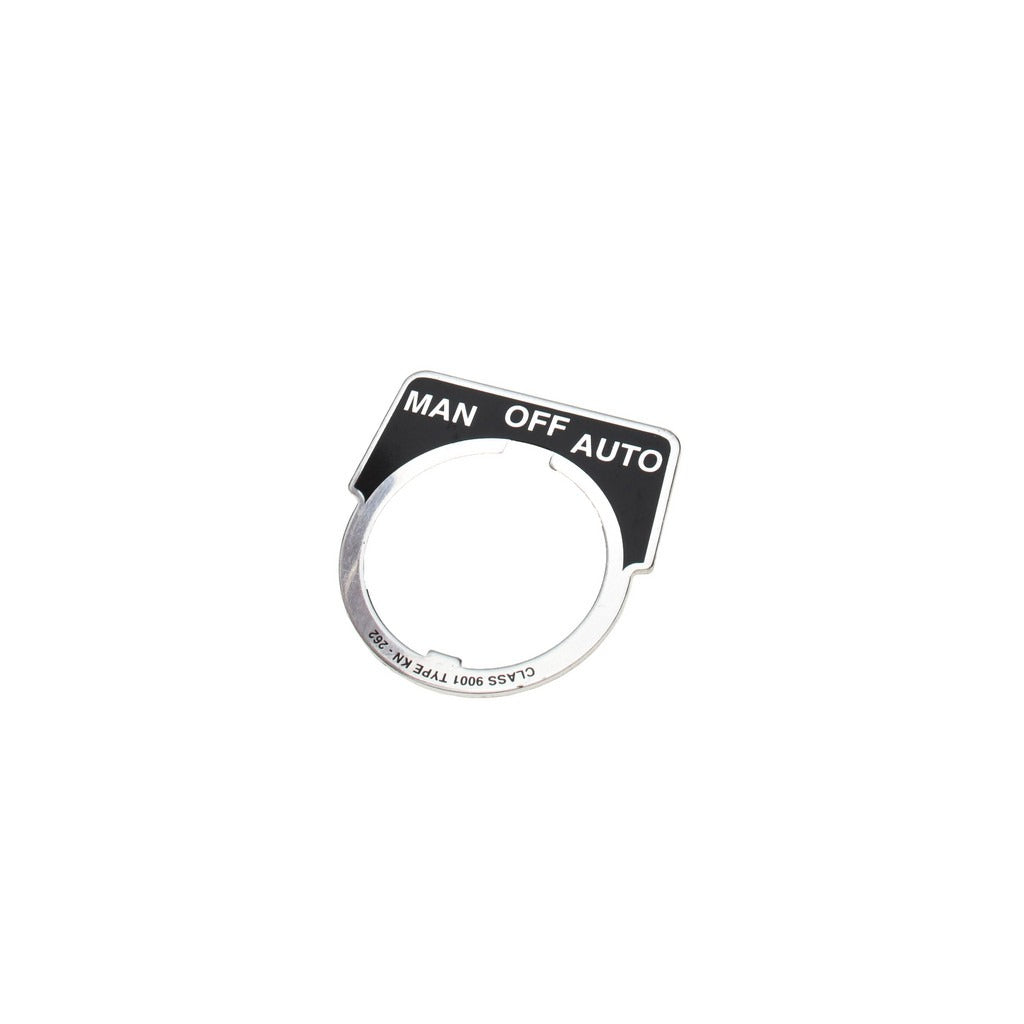

The SCHNEIDER ELECTRIC 9001KN262 is an aluminum legend plate with a Manual-Off-Auto marking and black background, designed for use with 30mm industrial control devices. The plate provides clear operator labeling at the control panel face, identifying selector switch positions for maintenance and operating personnel. At 41mm overall width and 30mm hole diameter, it mounts flush against the panel surface to give a clean, professional appearance. Licensed electricians and control panel technicians typically install this component during panel assembly or legend replacement service.

This legend plate is suited for industrial and commercial control panel applications where 30mm selector switches or selector pushbuttons require clear position labeling. The Manual-Off-Auto designation is common in motor control circuits, HVAC unit control panels, and pump system controls. It fits Harmony 9001K, 9001SK, and 9001KX series 30mm selector switches and selector pushbuttons manufactured by Schneider Electric.

Key Features

• Manual-Off-Auto legend markings for standard motor and equipment control labeling
• Black background provides high-contrast legibility against engraved or printed text
• Aluminum construction for durable, long-term panel face use
• 30mm hole diameter fits standard 30mm industrial control device cutouts
• 41mm overall width for proper coverage around the selector switch bezel
• Sold individually, one plate per package

Compatibility

Designed for use with Harmony 9001K, 9001SK, and 9001KX series 30mm selector switches and selector pushbuttons from Schneider Electric.

Installation Notes

Installation is performed by a licensed electrician or qualified control panel technician. De-energize the panel and follow applicable NFPA 70E lockout/tagout procedures before accessing any live control enclosure. The legend plate typically snaps or slides into the legend plate holder on the selector switch operator. Verify the hole diameter and overall plate dimensions match the existing operator assembly before installation.
