Schneider Electric 9001KN260BP Legend Plate Hand-off-auto

Product Description

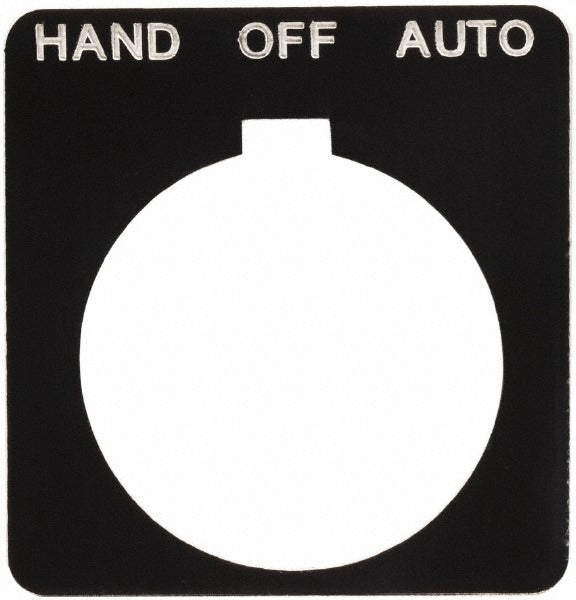

The SCHNEIDER ELECTRIC 9001KN260BP is a square plastic legend plate printed with Hand-Off-Auto markings for use with 30mm selector switches and selector pushbuttons. The plate features a black background with white letters for clear, high-contrast labeling at control panels and motor starter enclosures. Measuring 1.75 inches square with a 1.2-inch hole diameter, it fits directly over standard 30mm operator holes. Weighing just 0.01 pounds, the plastic construction keeps panel assembly lightweight. Electricians and control panel builders install this plate to identify switch function and reduce operator error at the control station.

This legend plate is used in industrial and commercial control panel applications where Hand-Off-Auto selector switches require clear function labeling. Typical installations include motor control centers, pump panels, fan control stations, and HVAC air handling unit control enclosures. The Hand-Off-Auto legend is one of the most common configurations in motor and blower control circuits. It is sold individually and is appropriate for both new panel builds and field replacements where an existing legend plate is damaged or missing.

Key Features

• Hand-Off-Auto legend markings for motor and blower control switch identification
• Black background with white letters for high-contrast readability
• 1.2-inch hole diameter fits standard 30mm operator cutouts
• 1.75 inches square overall footprint
• Lightweight plastic construction at 0.01 pounds
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm selector switches and selector pushbuttons.

Installation Notes

Installation is performed by a licensed electrician or qualified control panel technician. De-energize and lock out the control panel before servicing any operator or legend plate on the enclosure face. The legend plate slides over the operator shaft and seats against the panel surface prior to securing the operator bezel or collar. Follow applicable NEC requirements for industrial control panel wiring and labeling during any panel modification.
