Schneider Electric 9001KN245BP Legend Plate On-off 30mm

Product Description

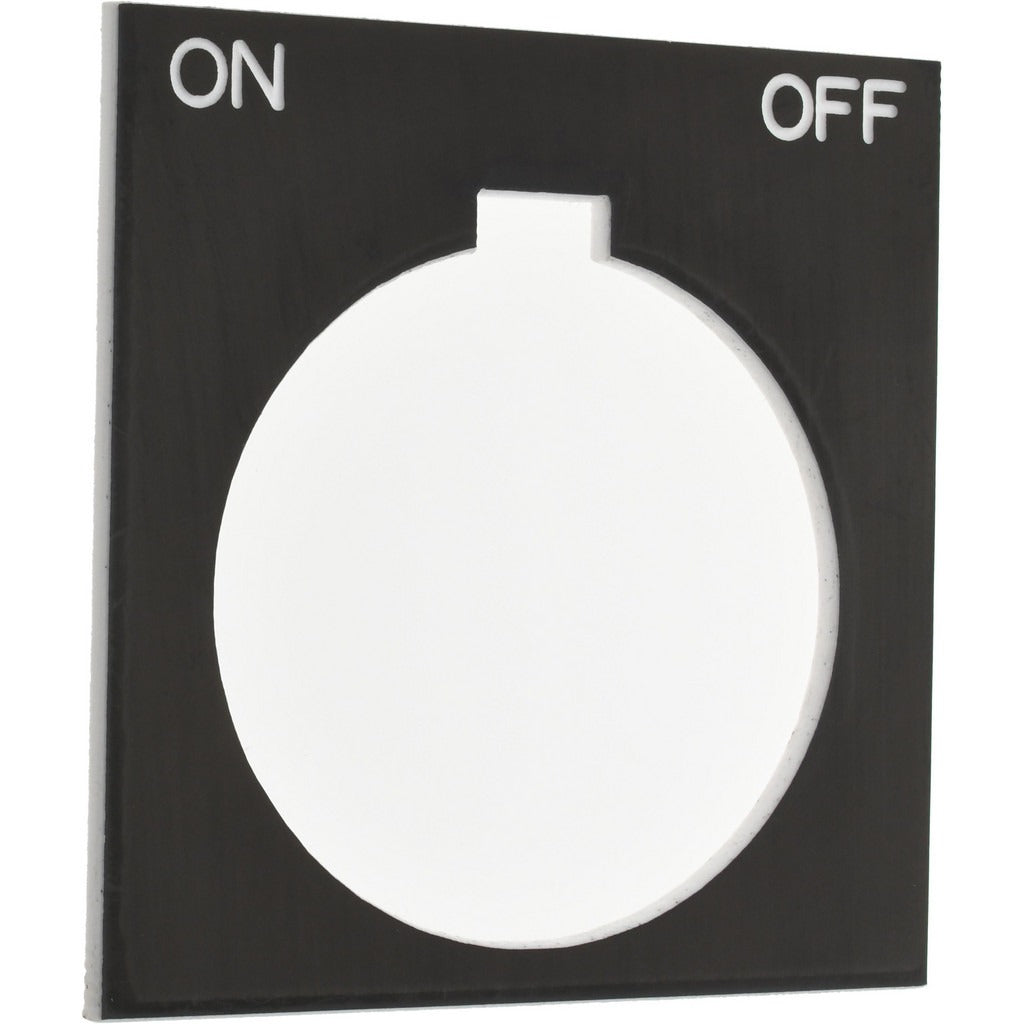

The SCHNEIDER ELECTRIC 9001KN245BP is a square plastic legend plate marked with On-Off text, designed for use with 30mm industrial control devices. It features a black background with white letters, providing high-contrast readability in panel and enclosure environments. The plate measures 1.75 inches square with a 1.2 inch hole diameter sized to fit 30mm selector switches and selector pushbuttons. Licensed electricians and industrial maintenance technicians install these plates during panel assembly, equipment labeling upgrades, or legend replacement on existing switch hardware.

This legend plate is suited for industrial and commercial control panel applications where operator interface labeling is required. It is a direct-fit accessory for Harmony 9001K, SK, and KX series 30mm selector switches and selector pushbuttons manufactured by Schneider Electric. Typical installations include motor starters, machine control panels, and HVAC equipment enclosures where On-Off function identification is needed at the operator level.

Key Features

• On-Off legend marking for clear operator identification
• Black background with white letters for high-contrast visibility
• Square shape, 1.75 inches overall with 1.2 inch hole diameter
• Designed for 30mm Harmony 9001K, SK, and KX series devices
• Lightweight plastic construction at approximately 0.02 pounds
• Single-unit packaging — sold individually

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm selector switches and selector pushbuttons from Schneider Electric.

Installation Notes

Legend plates are installed by electricians or qualified panel technicians during control panel construction or field maintenance. De-energize the panel and follow applicable NFPA 70E lockout-tagout procedures before working inside any enclosure. The plate snaps or seats into the operator head — do not force-fit or modify the hole diameter. Verify the plate is fully seated and the legend is oriented correctly before closing the enclosure.
