Schneider Electric 9001KN223BP Legend Plate Reset

Product Description

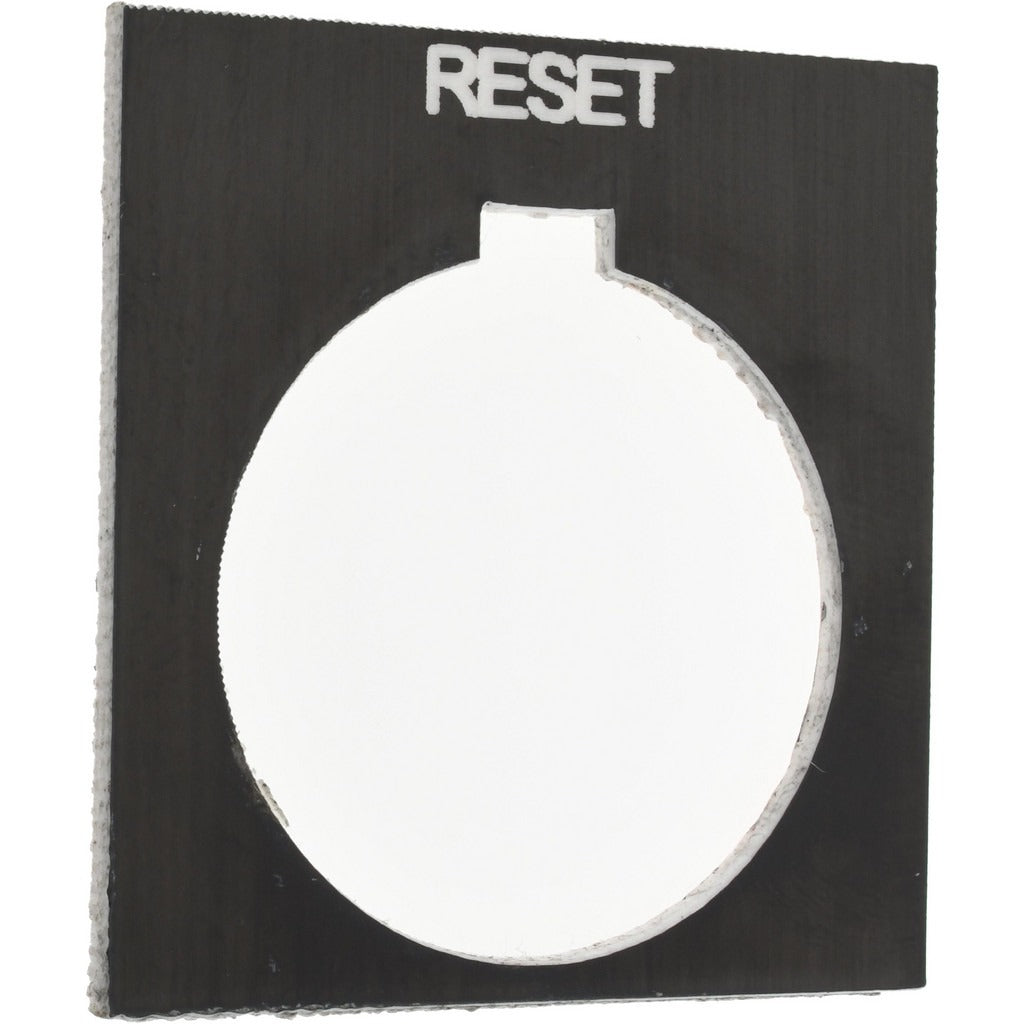

The SCHNEIDER ELECTRIC 9001KN223BP is a square plastic legend plate marked with the word Reset in white letters on a black background. It fits 30mm pushbutton and pilot light assemblies and serves as a clear visual identifier at the operator interface. The plate measures 1.75 inches square with a 1.2-inch hole diameter to seat flush over a standard 30mm operator. Electricians and panel builders install this plate during initial panel assembly or when relabeling existing control stations for updated machine functions.

This legend plate is designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights. It is a common component in industrial control panels, machine operator stations, and process equipment where clear button labeling is required for safe operation. The Reset designation makes it appropriate for emergency restart sequences, fault-clear buttons, and cycle-restart controls in both light manufacturing and heavy industrial environments.

Key Features

• Reset legend marking in white letters for high contrast visibility against the black background
• Square profile at 1.75 inches per side for a clean, uniform appearance in multi-button stations
• 1.2-inch hole diameter fits standard 30mm pushbutton and pilot light operator bodies
• Plastic construction keeps weight minimal at 0.01 pounds for easy handling during panel wiring
• Compatible with Harmony 9001K, SK, and KX series operators for direct OEM-style fitment

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights as stated by the manufacturer.

Installation Notes

Installation is performed by a qualified electrician or control panel builder. De-energize and lock out the control circuit before disassembling any pushbutton operator. The legend plate snaps or slides into the operator legend holder without special tools. Verify alignment of the hole diameter over the operator body before securing the legend carrier to avoid cracking the plastic.
