Schneider Electric 9001KN144BP Legend Plate Off-on 30mm

Product Description

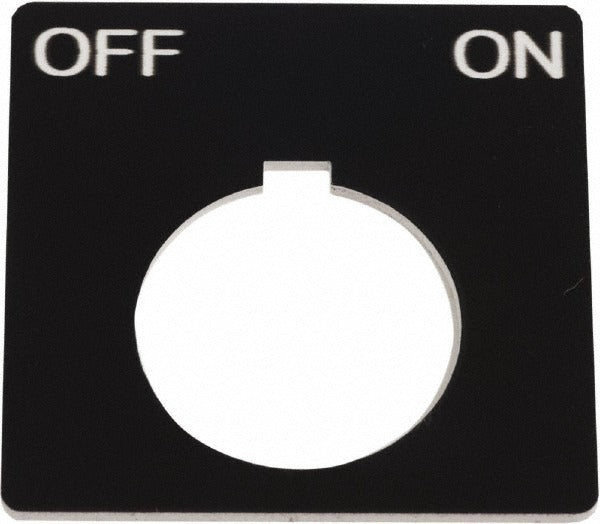

The SCHNEIDER ELECTRIC 9001KN144BP is a square plastic legend plate marked with Off-On text, designed for use with industrial selector switches and selector pushbuttons. The plate features a black background with white letters for clear, high-contrast readability in control panel environments. It measures 2.25 inches square with a 1.2-inch hole diameter, fitting standard 30mm mounting configurations. Weighing just 0.01 pounds, this legend plate provides a lightweight labeling solution for panel builders, electricians, and control system technicians performing new installations or component replacements.

This legend plate is intended for use in industrial and commercial control panel applications where selector switches or selector pushbuttons require clear operator labeling. It suits both new builds and retrofit projects where existing legend plates are damaged, faded, or missing. Panel builders and industrial electricians typically install this plate during control panel assembly or field servicing of operator interface devices.

Key Features

• Off-On legend marking for clear operator identification
• Black background with white letters for high-contrast visibility
• Square shape measuring 2.25 inches x 2.25 inches
• 1.2-inch hole diameter fits standard 30mm selector switch cutouts
• Lightweight plastic construction at 0.01 pounds
• Sold individually with a minimum order quantity of 1

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm selector switches and selector pushbuttons.

Installation Notes

Installation is performed by qualified electricians or panel builders during control panel assembly or maintenance. De-energize and lockout the control panel before servicing any operator interface components, following NFPA 70E safe work practices. The legend plate snaps or seats over the switch actuator opening and should be inspected for proper seating before closing the panel enclosure.
