Schneider Electric 9001KN123BP Legend Plate Reset 30mm

Product Description

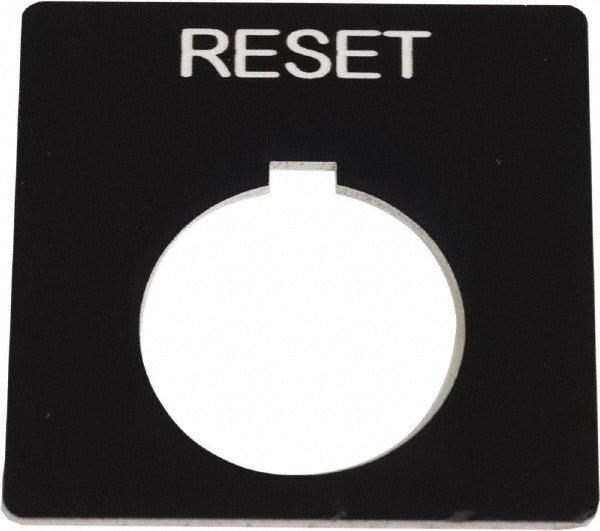

The SCHNEIDER ELECTRIC 9001KN123BP is a square plastic legend plate marked with the word "Reset" for use in industrial control panel applications. It features a black background with white letters for clear, high-contrast readability at the operator interface. The plate measures 2.25 inches square and is designed to fit 30mm pushbutton and pilot light assemblies. At 0.01 pounds, this lightweight plastic component installs without tools beyond snapping it into the compatible legend plate carrier. Electricians and panel builders install these plates to label operator controls during panel assembly or field modification.

This legend plate is suited for industrial, commercial, and light manufacturing control panel builds where clearly labeled operator stations are required. It fits the Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights. The 1.2-inch hole diameter accepts the standard 30mm operator shaft, and the 2.25-inch square footprint aligns with the standard legend plate window on compatible operator housings. Typical applications include machine reset stations, conveyor controls, and process equipment panels.

Key Features

• Square plastic construction with black background and white "Reset" lettering for high-contrast labeling
• 1.2-inch hole diameter sized for 30mm pushbutton and pilot light operators
• 2.25-inch square footprint fits standard Harmony 9001K/SK/KX legend plate carriers
• Lightweight at 0.01 pounds — minimal panel loading
• Sold individually — single-unit minimum order for easy replacement stocking

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights.

Installation Notes

Installation is performed by licensed electricians or qualified panel builders. De-energize the control panel and follow applicable NFPA 70 (NEC) lockout/tagout procedures before servicing any operator station. The legend plate typically snaps into the carrier or bezel on the operator housing — consult the operator assembly instructions for the correct insertion method. Do not force the plate into a carrier intended for a different hole diameter or plate size, as this may damage the plastic retaining tabs.
