Schneider Electric 9001KN102RP Legend Plate Stop 30mm

Product Description

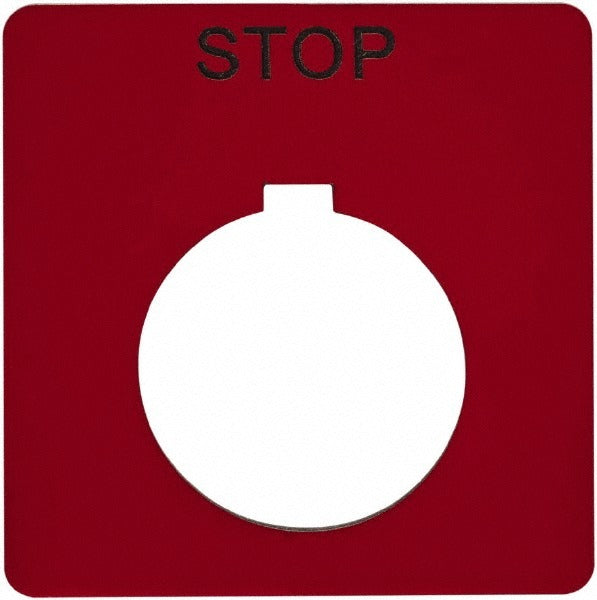

The SCHNEIDER ELECTRIC 9001KN102RP is a square plastic legend plate marked with a Stop designation, designed for use with 30mm pushbutton and pilot light assemblies in industrial control panels. The plate features a red background with black letters, providing a high-contrast visual indicator that communicates stop or halt functions at a glance. It measures 2.25 inches square and accepts a 1.2-inch hole diameter to fit standard 30mm operator hardware. At 0.01 pounds, this lightweight component installs directly onto the front face of a pushbutton operator without tools beyond basic panel assembly. Electricians and control panel builders rely on this plate to meet labeling and identification requirements in machine control and industrial automation environments.

This legend plate is suited for use in residential, commercial, and industrial control panel applications where 30mm pushbutton operators require clear function labeling. It is a direct-fit replacement for Stop-labeled plates on compatible operator stations, particularly in machine control, conveyor systems, motor starters, and other industrial automation panels where NFPA 79 or similar standards call for clearly marked operator controls. It ships individually and can be sourced as a single unit replacement.

Key Features

• Stop designation with red background and black letters for clear operator identification
• Square profile at 2.25 inches x 2.25 inches fits standard 30mm panel cutouts
• 1.2-inch hole diameter matches 30mm pushbutton and pilot light operator hardware
• Lightweight plastic construction at 0.01 pounds for easy handling and panel installation
• Compatible with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights as stated by the manufacturer.

Installation Notes

Installation of this legend plate is typically performed by a licensed electrician or qualified control panel technician. De-energize the control panel and follow applicable lockout/tagout procedures before servicing any operator hardware. The plate snaps or slides onto the front face of the pushbutton operator body — no special tools are required. Verify that the hole diameter and overall plate dimensions match the existing operator cutout and legend plate frame before installation.
