Schneider Electric 9001KN101SP Legend Plate Start 30mm

Product Description

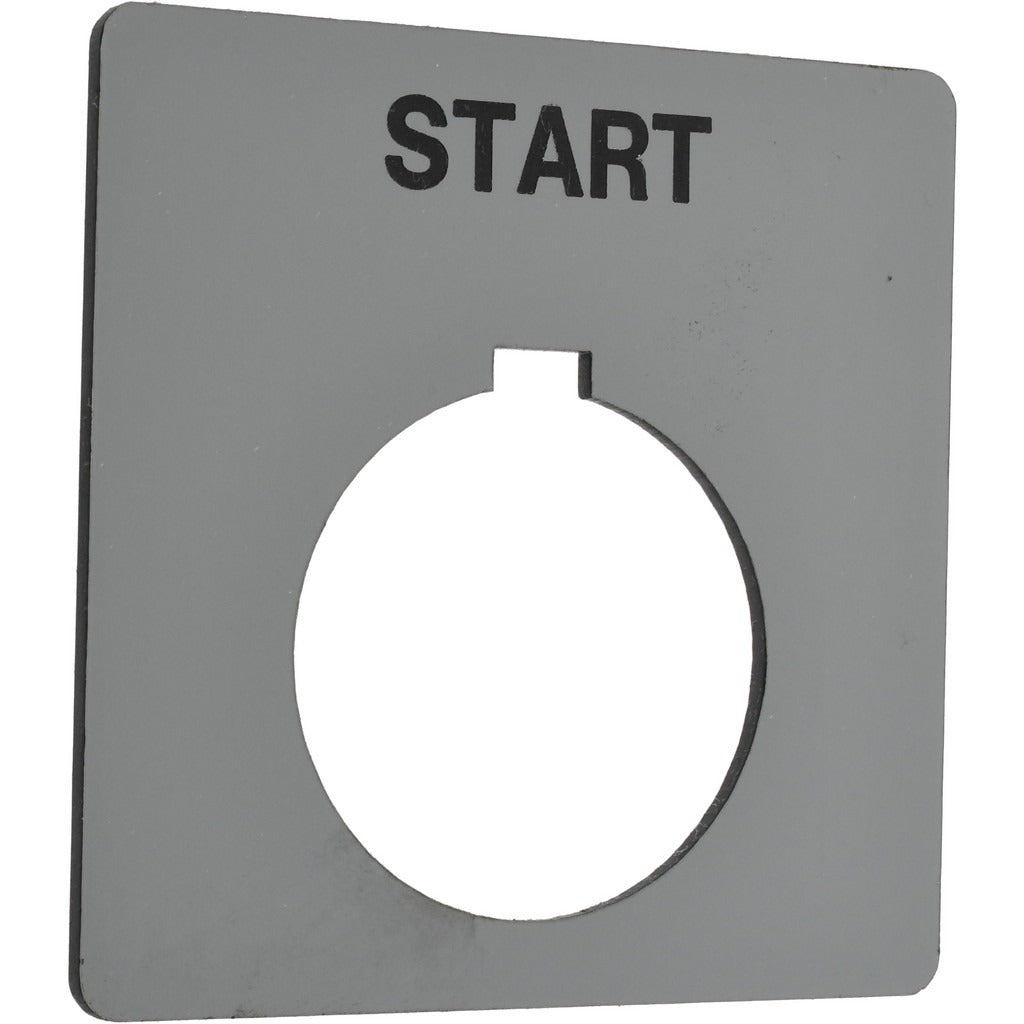

The SCHNEIDER ELECTRIC 9001KN101SP is a square plastic legend plate marked with the word "Start" in black letters on a silver background. It is designed for use with 30mm pushbutton and pilot light assemblies in industrial control panels and operator interface stations. The plate measures 2.25 inches square with a 1.2-inch hole diameter, fitting standard 30mm mounting cutouts. Electricians and control panel builders install this type of legend plate to clearly label control station functions, improving operator safety and reducing the chance of incorrect activation in production or mechanical equipment environments.

This legend plate is intended for industrial and commercial control panel applications where pushbutton stations require clear, durable labeling. It is suited for use in manufacturing lines, pump control panels, motor starter enclosures, and similar operator interface setups that call for standardized 30mm component labeling. The silver background with black lettering provides high contrast for quick visual identification under typical shop-floor lighting conditions.

Key Features

• START legend marking in black letters on a silver background for high-contrast readability
• Square shape, 2.25 inches per side, with a 1.2-inch hole diameter for 30mm pushbutton and pilot light cutouts
• Plastic construction suited for standard indoor industrial control panel environments
• Compatible with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights
• Single-piece packaging with a minimum order quantity of 1 for easy single-unit replacement

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights as stated by the manufacturer.

Installation Notes

Installation of legend plates should be performed by a qualified electrician or control panel technician. De-energize the control panel and follow lockout/tagout procedures before servicing any operator interface components. The legend plate snaps or slides into the pushbutton operator or legend plate frame — consult the equipment assembly documentation to confirm the correct retention method for the specific operator body in use. Verify the hole diameter and overall dimensions match the existing panel cutout and operator before final assembly.
