Schneider Electric 9001KN101BP Legend Plate Start 30mm

Product Description

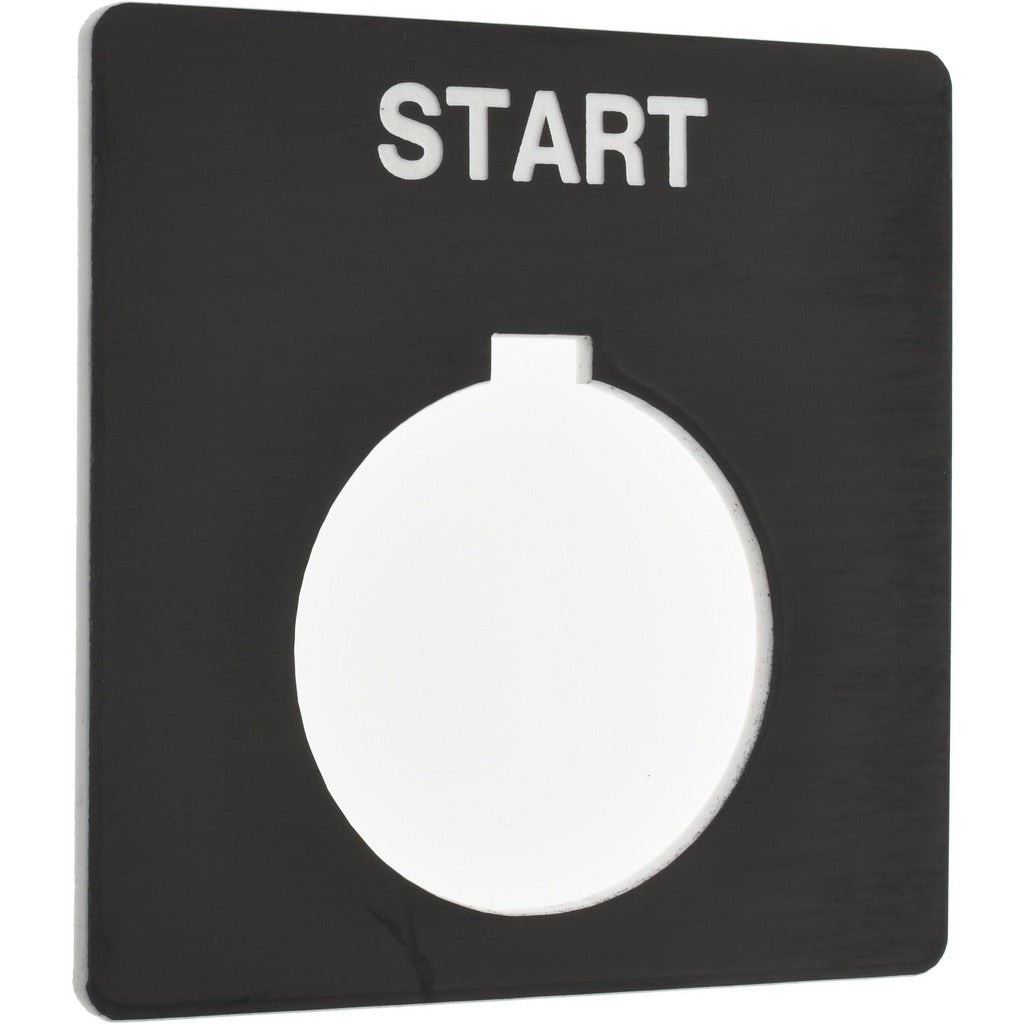

The SCHNEIDER ELECTRIC 9001KN101BP is a square plastic legend plate marked with the word Start in white letters on a black background. It is designed for use with 30mm pushbutton and pilot light operator stations in industrial and commercial control panel applications. The plate measures 2.2 inches square with a 1.2-inch hole diameter sized for 30mm mounting hardware. It is a low-profile, snap-in component installed by electricians and controls technicians during panel assembly, maintenance, or operator interface upgrades. The lightweight plastic construction keeps overall weight at 0.01 pounds.

This legend plate fits into operator station assemblies found in manufacturing facilities, process control panels, and building automation enclosures. It provides clear, standardized labeling at the pushbutton level to meet workplace safety and machine-labeling requirements. Panel builders and industrial electricians install these plates when commissioning new control stations or replacing worn, faded, or incorrect legend markings on existing equipment.

Key Features

• Start legend marking with white letters on black background for high-contrast visibility
• Square shape at 2.2 inches overall width and height
• 1.2-inch hole diameter sized for 30mm pushbutton and pilot light operators
• Plastic construction, lightweight at 0.01 pounds
• Compatible with Harmony 9001K, SK, and KX series 30mm operator stations
• Sold individually, one plate per package

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician or controls technician. De-energize the control panel and follow lockout/tagout procedures in accordance with NFPA 70E before servicing any operator station. The legend plate snaps into or mounts onto the pushbutton operator body -- consult the operator station assembly instructions for the correct orientation and seating method. Do not force the plate onto an incompatible operator diameter.
