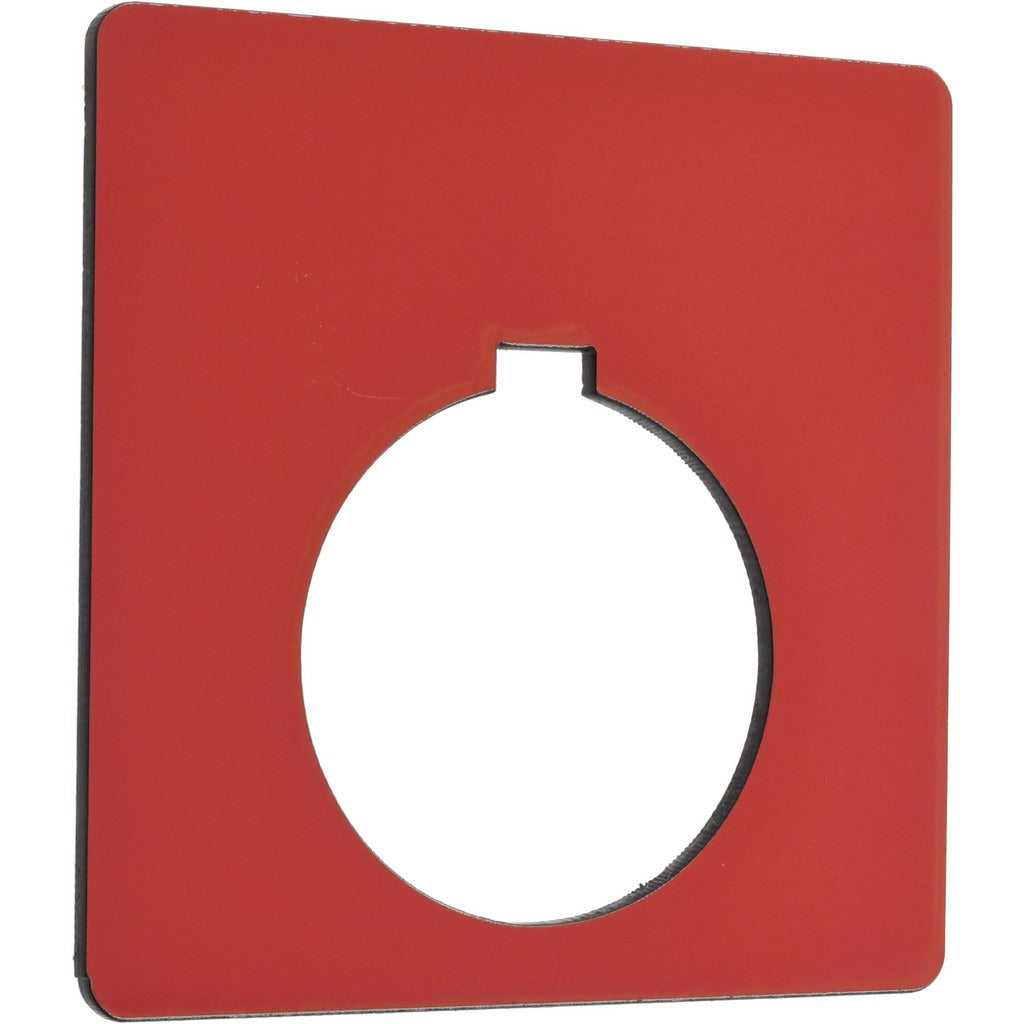

Schneider Electric 9001KN100RP Square Plastic Legend Plate

Product Description

The SCHNEIDER ELECTRIC 9001KN100RP is a square, blank plastic legend plate designed for use with 30mm pushbutton and pilot light assemblies in industrial and commercial control panel applications. Featuring a red background with black lettering area, this legend plate measures 2.25 inches square and accepts a 1.2-inch hole diameter. It allows panel builders and electricians to label operator controls clearly without pre-printed text, making it suitable for custom labeling applications. The plate installs directly onto compatible 30mm devices and provides a clean, professional finish at the operator interface surface.

This legend plate is intended for use in control panel builds, machine operator stations, and industrial pushbutton enclosures where 30mm pushbutton or pilot light hardware is installed. It is compatible with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights. Electricians and panel builders typically specify blank legend plates when custom engraving or label overlays are applied on-site. Its square profile and standard 1.2-inch hole diameter make it a straightforward drop-in accessory for new builds and panel refurbishments alike.

Key Features

• Blank face with red background and black letter color for custom labeling flexibility
• Square profile measuring 2.25 inches across to fit standard 30mm operator cutouts
• 1.2-inch (30mm) hole diameter fits Harmony 9001K, SK, and KX series hardware
• Lightweight plastic construction at 0.01 pounds for easy handling and installation
• Sold as a single unit with a minimum order quantity of one

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm pushbuttons and pilot lights as specified by the manufacturer.

Installation Notes

Installation is performed by qualified electricians or panel builders working on industrial control enclosures. De-energize the control panel and follow applicable NFPA 70E lockout/tagout procedures before servicing any operator devices. The legend plate snaps or seats onto the front face of the pushbutton or pilot light operator; no special tools are typically required. Verify hole diameter and plate dimensions match the existing operator assembly before installation.
