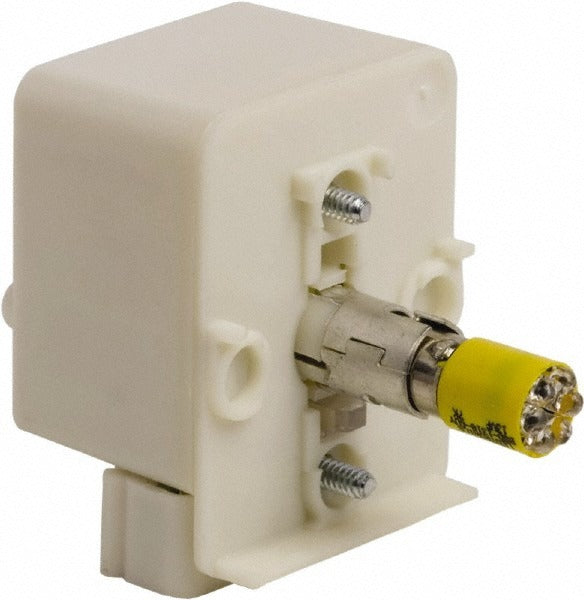

Schneider Electric 9001KM38LY Yellow Led Light Module

Product Description

The SCHNEIDER ELECTRIC 9001KM38LY is a yellow lens LED light module rated for 120 VAC and 120 VDC operation. It is designed as a pilot light or indicator module used in industrial control panels, operator interface stations, and machine control enclosures. The LED lamp type provides long service life and low power draw compared to incandescent alternatives. Licensed electricians and industrial maintenance technicians typically install and service this module. It carries UL Listed, CSA Standard, CE, and RoHS certifications, making it suitable for installations requiring third-party compliance documentation.

This module is used in push button stations, selector switches, and panel-mounted indicator assemblies found in manufacturing, process control, and light commercial electrical systems. The yellow lens color is commonly used to signal caution, standby, or intermediate status conditions. It fits into standard 30mm operator interface hardware configurations and is sold individually as a replacement or service part.

Key Features

• LED lamp type for extended service life and reduced power consumption
• Dual-rated for 120 VAC and 120 VDC operation
• Yellow lens for caution or status indication in control panel applications
• UL Listed (File No. E42259, CCN NKCR) and CSA Standard certified
• CE Certified (File No. LR25490, Class 3211 03) and RoHS compliant
• Sold individually as a direct replacement module

Compatibility

Designed as an OEM-style replacement LED light module for 30mm industrial push button and pilot light operator interface assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing any light module. Verify that supply voltage matches the module rating of 120 VAC or 120 VDC before energizing. Do not exceed the rated voltage, as this will damage the LED assembly.
