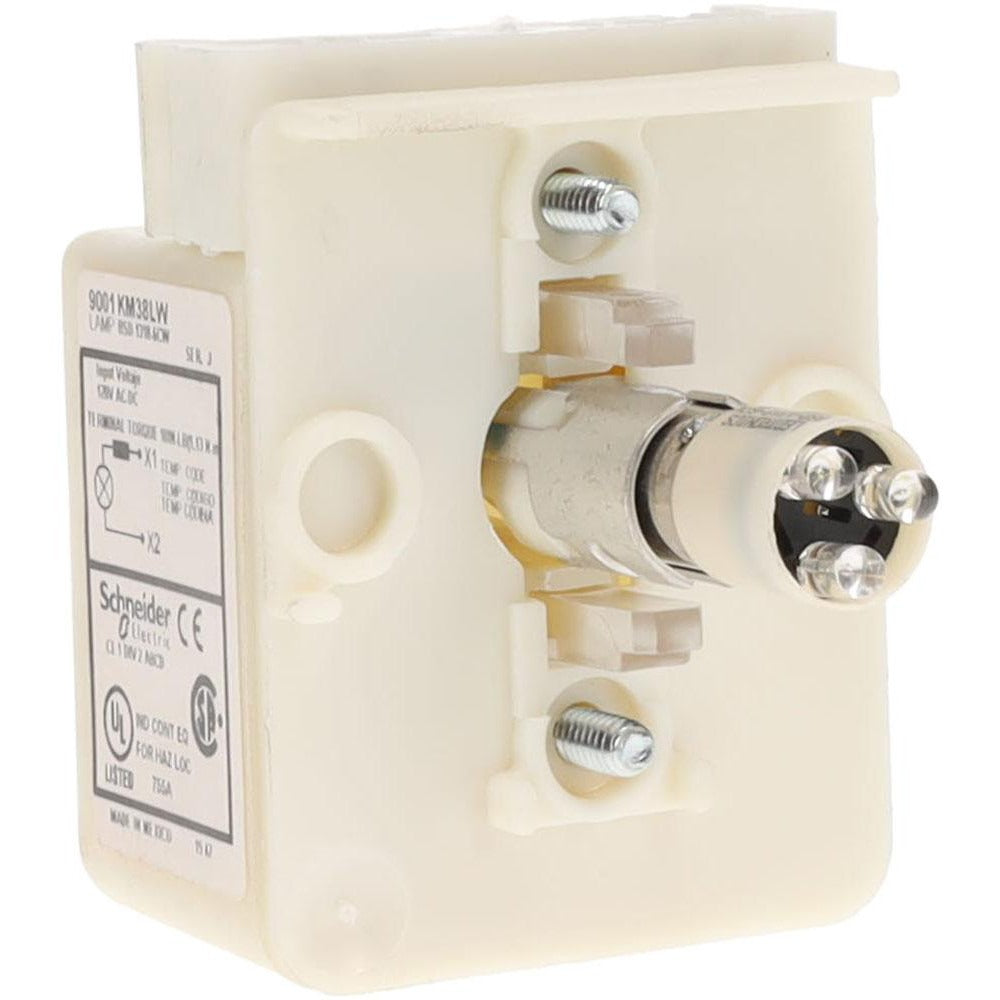

Schneider Electric 9001KM38LW Led Light Module White

Product Description

The SCHNEIDER ELECTRIC 9001KM38LW is an LED light module designed for use in industrial pilot light assemblies and control panel pushbutton stations. It operates on both 120 VAC and 120 VDC power supplies, making it compatible with a range of control circuit configurations. The module features a white lens and uses an LED light source for long service life and low power consumption. At 0.16 pounds, it is a compact, direct-replacement component installed by electricians and control panel technicians. CE, CSA, and UL certifications confirm the unit meets recognized safety and performance standards.

This module is suited for industrial and commercial control panel applications where pilot light indication is required. Typical installations include machine operator stations, motor control centers, and panel-mounted pushbutton assemblies operating on 120-volt control circuits. The dual voltage rating — 120 VAC and 120 VDC — gives it flexibility across AC and DC control circuit designs. It is a replacement or spare-stock item for maintenance electricians servicing existing Schneider Electric pushbutton and pilot light hardware.

Key Features

• Dual voltage rated: operates on 120 VAC and 120 VDC control circuits
• LED lamp type for extended service life compared to incandescent lamps
• White lens for clear, neutral indication in panel assemblies
• UL Listed (File No. E42259, CCN NKCR) for use in listed assemblies
• CE Certified (File No. LR25490, Class 3211 03) and CSA Standard compliant
• RoHS compliant construction

Compatibility

Designed as an OEM-style replacement LED light module for Schneider Electric pushbutton and pilot light assemblies accepting 120 VAC or 120 VDC lamp modules.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing any light module. Verify the control circuit voltage matches the module rating — 120 VAC or 120 VDC — before energizing. Do not install in circuits exceeding the rated voltage.
