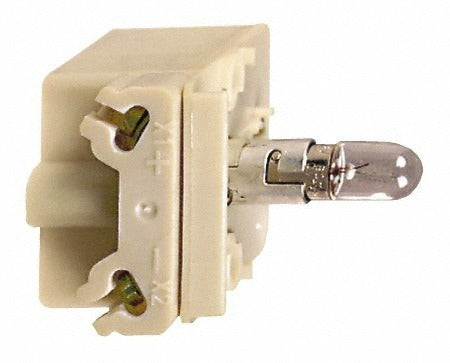

Schneider Electric 9001KM38 Indicating Light 120V

Product Description

The SCHNEIDER ELECTRIC 9001KM38 is an incandescent indicating light rated for 120 VAC/VDC operation. It serves as a panel-mount status indicator, providing a clear visual signal for machine control and industrial automation circuits. Licensed electricians and control panel technicians install this type of indicating light in operator interface stations, control enclosures, and machine panels where a reliable lamp-based signal is required. The unit is RoHS compliant and ships as a single piece, making it a straightforward one-for-one replacement in existing installations.

This indicating light is suited for industrial and commercial control panel applications. Typical installations include motor starter panels, pump control stations, conveyor systems, and general machine control enclosures where 120 VAC or 120 VDC pilot light indication is needed. It is a compact unit designed for standard 30 mm push-button and pilot device mounting configurations common in industrial control assemblies.

Key Features

• Rated for 120 VAC/VDC operation — compatible with both AC and DC control circuits at this voltage
• Incandescent lamp type provides straightforward, high-visibility indication
• RoHS compliant construction
• Compact form factor: 3.6 inches length, 2.2 inches width, 1.8 inches height
• Lightweight at 0.14 pounds — minimal panel load
• Single-piece packaging — direct one-for-one replacement

Compatibility

Designed as an OEM-style replacement indicating light for industrial control panel pilot device assemblies operating at 120 VAC/VDC.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before removing or installing any indicating light or pilot device. Verify that the circuit voltage matches the 120 VAC/VDC rating of the lamp before energizing. Confirm proper seating of the lamp in the lamp holder to ensure reliable contact and indication.
