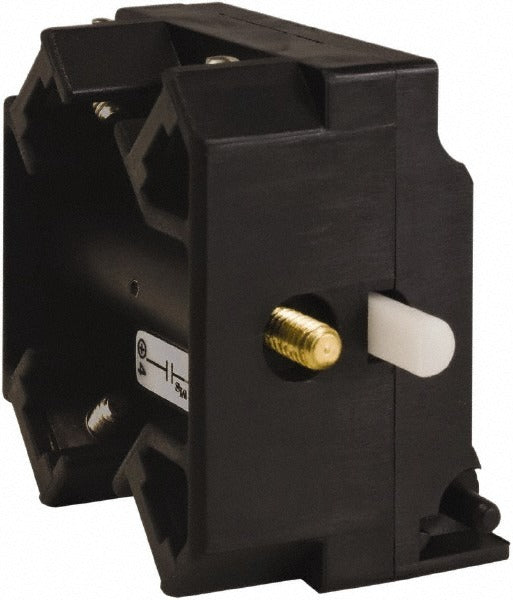

Schneider Electric 9001KA55 Contact Block 3A 2NO

Product Description

The SCHNEIDER ELECTRIC 9001KA55 is a 2NO (normally open) electrical switch contact block rated for 3 amps and designed for use in industrial and commercial control panel applications. It accepts both 115 VDC and 240 VAC signals, making it compatible with a wide range of control circuit configurations. The screw terminal connection simplifies field wiring and replacement. Licensed electricians and controls technicians install this type of contact block as part of pushbutton, selector switch, or operator interface assemblies. It carries CE, CSA, and UL listings, confirming compliance with recognized North American and international safety standards.

This contact block is suited for light-duty control circuit duty in industrial control panels, machine controls, and process equipment where a normally open switching configuration is required. Typical applications include motor starter control circuits, indicator light switching, and relay logic panels in both residential commercial and light industrial environments. The compact form factor fits standard operator device bodies commonly found in control enclosures.

Key Features

• 2NO (normally open) contact configuration for standard control circuit switching
• 3 amp current rating at 115 VDC and 240 VAC
• Screw terminal connections for secure, tool-accessible field wiring
• CE, CSA LR25490 Class 3211 03, and UL Listed (File E42259 CCN NKCR) certifications
• Compact dimensions for installation in tight control panel assemblies

Compatibility

Designed as an OEM-style replacement contact block for standard operator device assemblies used in industrial and commercial control circuit applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing or installing contact blocks. Use a suitable screwdriver to secure terminal connections and verify contact seating before re-energizing the circuit. Do not exceed the rated amperage or voltage of the contact block.
