Schneider Electric 9001KA2 Contact Block 1NO 30mm

Product Description

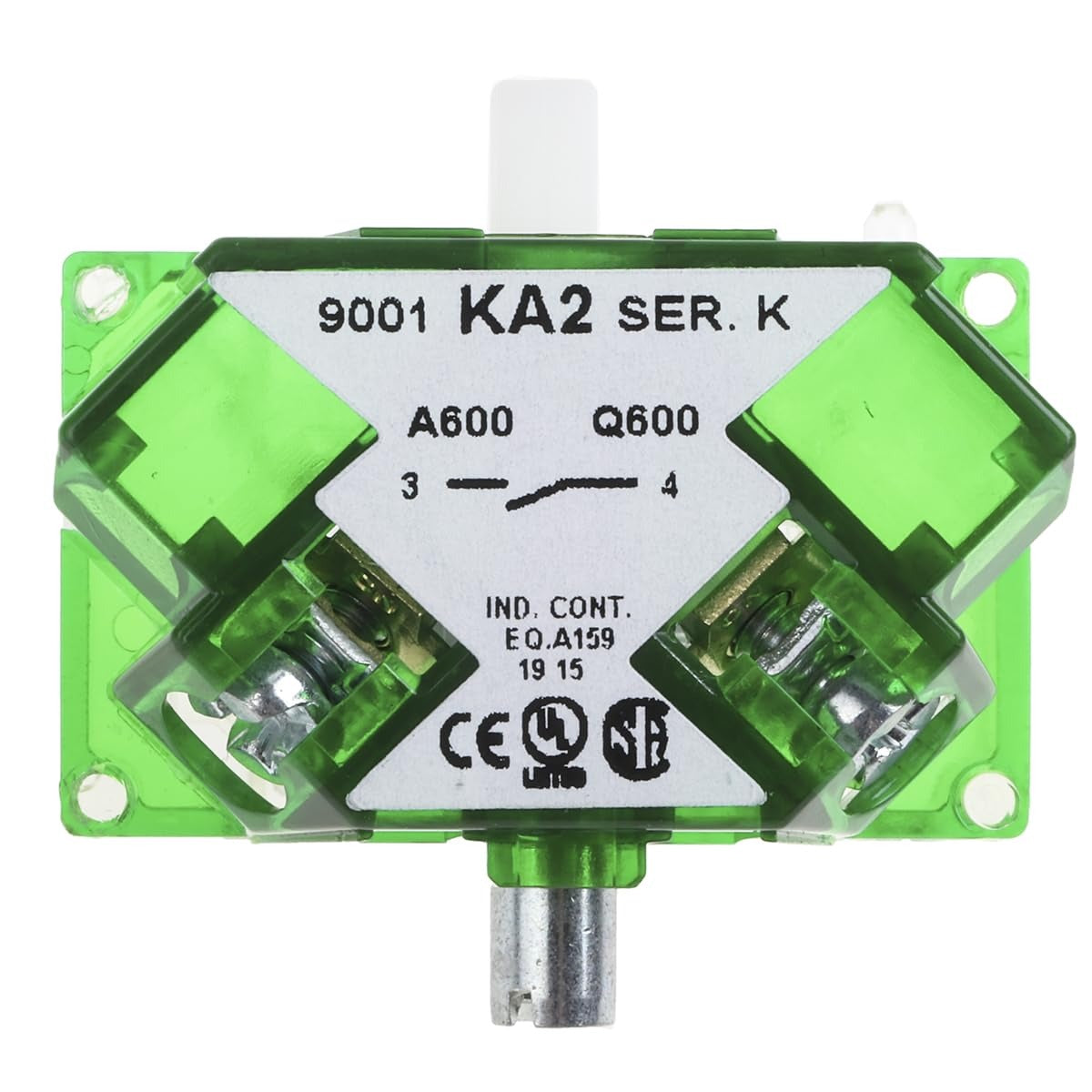

The SCHNEIDER ELECTRIC 9001KA2 is a single normally open (1NO) contact block designed for use with 30mm push button and selector switch operators. It carries a contact rating of 10 amps at 250 volts AC and meets NEMA contact rating designation A600/Q600. The block uses a screw/clamp terminal connection and features momentary action, making it a reliable switching element in industrial control panels, machine tool stations, and similar operator interface assemblies. Licensed electricians and industrial maintenance technicians are the typical installers. Standards compliance includes UL, CSA, and CE.

This contact block is designed for operator applications using 30mm mounting formats common in industrial and commercial control enclosures. It is suited for momentary push button stations requiring a single normally open switching circuit. The clear/red color coding assists with visual identification during assembly and troubleshooting. Typical applications include motor start/stop stations, control panel operator assemblies, and machine control interfaces where a compact, rated contact element is required.

Key Features

• 1NO (normally open) contact form for momentary switching action
• 10 amp contact rating at 250 volts AC
• NEMA rating A600/Q600 for industrial-grade performance
• Screw/clamp terminal connection for secure wiring
• Compliant with UL, CSA, and CE standards
• Clear/red color coding for easy identification in panel assemblies

Compatibility

Designed for use with Schneider 9001K Series 30mm operators as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control circuit before attaching or removing any contact block. Secure terminal screws to the torque range specified on the operator assembly documentation. Verify contact form and action type match the control logic requirements before closing the enclosure.
