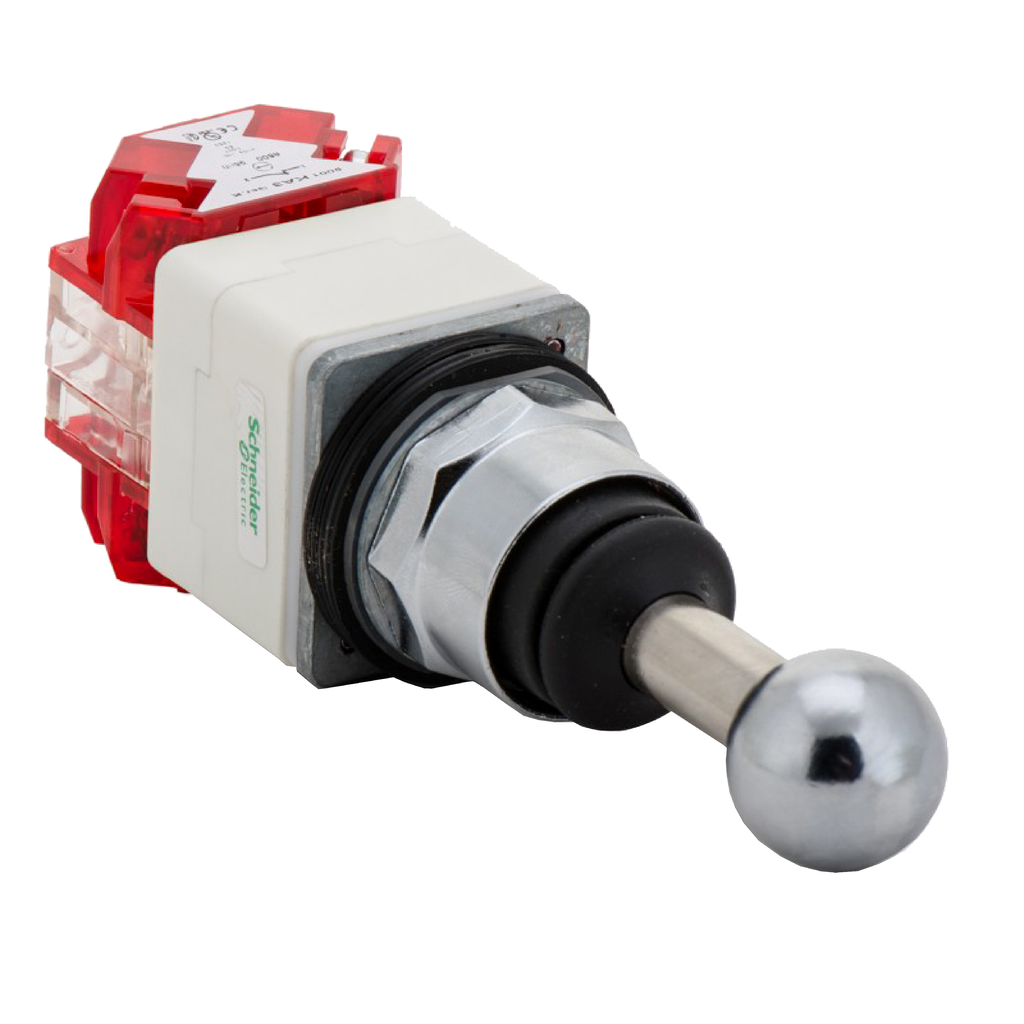

Schneider Electric 9001K71H7 Square D Joystick Push Button 30 mm 600 VAC

Product Description

The Schneider Electric 9001K71H7 is a joystick push button that operates at six hundred volts alternating current. This device has a spring return to center mechanism and features a chromium-plated metal bezel. It includes two normally open and two normally closed contacts for versatile application. The joystick controller is designed for easy installation in standard thirty millimeter diameter panel cut-outs, providing an ergonomic interface for machine control.

• Durable IP66 rated, protecting against dust and water
• Spring return mechanism for reliable operation
• Compatible with industry-standard screw-clamp connections

Product Highlights

This joystick controller is ideal for various industrial applications, offering precise control in challenging environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: 9001K71H7
• Operating Temperature: -25 to 70 degrees Celsius
• Weight: 0.82 lb (0.372 kg)
• Country of Origin: Mexico
• Warranty: 18 months
• Contact Material: Silver Alloy
• Enclosure Ratings: NEMA 1, NEMA 3, NEMA 4, NEMA 12
• UPC: 785901028734
