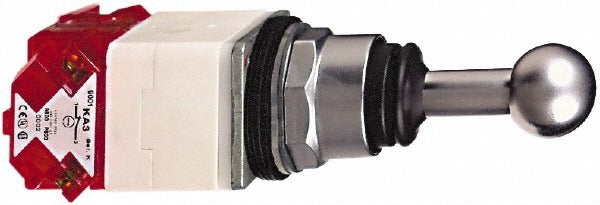

Schneider Electric 9001K35H2 Joystick Controller Switch

Product Description

The SCHNEIDER ELECTRIC 9001K35H2 is a 5-position momentary joystick controller switch designed for industrial control panel and machine operator interface applications. It features an octagonal handle that provides a positive grip for directional control inputs. The switch mounts through a 30mm diameter panel hole and carries an IP66 ingress protection rating, making it suitable for washdown and outdoor-rated enclosures. Operating temperature range spans from -13 degrees F to 158 degrees F. Licensed electricians and industrial control technicians install this switch as part of motor control, crane, hoist, or automated machine systems.

This joystick switch is used in industrial and commercial control applications where a momentary 5-position directional input is required. Typical installations include motor direction control panels, crane and hoist pendant stations, conveyor systems, and machine tool operator interfaces. The 30mm panel mount diameter aligns with standard IEC-format control component cutouts, allowing integration alongside pushbuttons, selector switches, and indicator lights in the same enclosure. The IP66 rating supports use in environments exposed to dust, water jets, or periodic washdown.

Key Features

• 5-position momentary (MO) joystick action for multi-directional control inputs
• Octagonal handle design for positive grip and tactile directional orientation
• IP66 ingress protection rating for dust-tight and water-jet-resistant installations
• 30mm mount hole diameter compatible with standard IEC control panel cutouts
• Wide operating temperature range: -13 degrees F to 158 degrees F
• Compact form factor: 2 inches height, 2.3 inches width, 6.5 inches length

Compatibility

Designed as an OEM-style replacement or direct-install joystick controller switch for industrial control panels using 30mm IEC-format mounting components.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial control technician in accordance with NEC Article 430 and applicable local codes. Disconnect and lock out all power to the control panel before removing the existing switch or wiring the new unit. Confirm the panel cutout measures 30mm in diameter before installation. Do not exceed the rated operating temperature range or the specified ingress protection boundaries of the enclosure.
