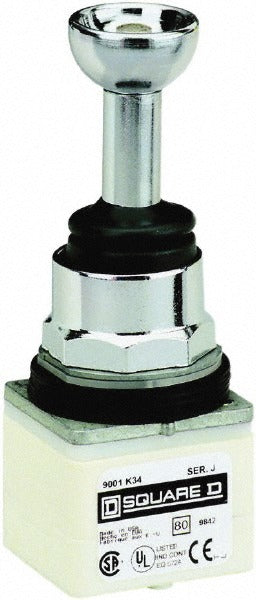

Schneider Electric 9001K34 Joystick Controller Switch

Product Description

The SCHNEIDER ELECTRIC 9001K34 is a 5-position momentary joystick controller switch designed for industrial control applications. The octagonal handle provides a secure, positive grip for operators working in demanding environments. The switch operates across a temperature range of -13 to 158 degrees F, making it suitable for both indoor and outdoor installations. With a 30mm mounting hole diameter and an IP66 ingress protection rating, this unit resists dust and high-pressure water jets. It is typically installed by industrial electricians and control panel technicians handling machine control or process automation systems.

This joystick switch fits standard 30mm panel cutouts and is suited for use in control panels, operator stations, and machine interfaces in industrial, commercial, and manufacturing environments. The momentary action returns the switch to neutral when released, which is the correct behavior for directional or jog-control circuits. The IP66 rating supports outdoor enclosures and washdown-rated installations where moisture exposure is a concern.

Key Features

• 5-position momentary (MO) action for directional or multi-axis control
• Octagonal handle shape for positive grip and operator orientation
• IP66 rated for dust-tight and high-pressure water jet resistance
• Operating temperature range: -13 to 158 degrees F
• 30mm panel mount hole diameter fits standard industrial cutouts
• Compact form factor: 6.5 inches long, 2.3 inches height, 2.1 inches wide

Compatibility

Designed as an OEM-style replacement or direct-fit joystick controller switch for 30mm industrial control panel assemblies. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC guidelines and local codes. Disconnect and lock out all power to the control panel before removing the existing switch or wiring the new unit. The 30mm mounting hole should be clean and free of burrs before seating the switch body. Verify that the momentary action and return-to-neutral function operate correctly before restoring power and returning the equipment to service.
