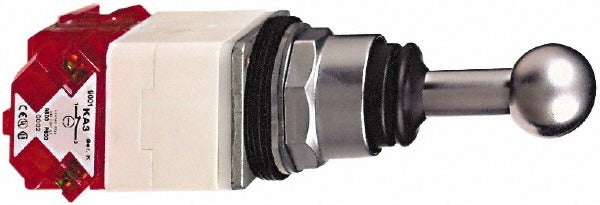

Schneider Electric 9001K31H8 Joystick Controller Switch

Product Description

The SCHNEIDER ELECTRIC 9001K31H8 is a 3-position momentary joystick controller switch designed for industrial control applications. It features an octagonal handle and installs through a 30mm mount hole. The switch operates across a wide temperature range of -13 to 158 degrees F, making it suitable for demanding environments. Rated IP66 for dust-tight and water-resistant protection, it ships as a single unit and is a direct replacement or web-sourced component for control panel builds and machinery upgrades. Electricians and industrial controls technicians are the typical installers.

This joystick controller switch is suited for use in industrial machinery, control panels, and automation systems where momentary 3-position joystick input is required. Its octagonal handle provides a positive grip for operators in factory and process control environments. The 2NC contact configuration makes it appropriate for safety interlocks, directional control circuits, and machine control stations in both light and heavy industrial settings.

Key Features

• 3-position momentary (MO) joystick action for directional control applications
• Octagonal handle shape for secure operator grip
• IP66 rating provides dust-tight and strong water-jet protection
• 30mm mount hole diameter for standard industrial panel cutouts
• 2NC contact configuration supports safety interlock and control circuit use
• Wide operating temperature range of -13 to 158 degrees F

Compatibility

Designed as an OEM-style replacement or direct-install joystick controller switch for 30mm industrial control panel applications requiring a momentary 3-position switch with 2NC contacts.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial controls technician. De-energize and lockout the control panel before beginning installation per NFPA 70E lockout/tagout procedures. Ensure the panel cutout matches the 30mm mount hole diameter before installing. Verify contact configuration and circuit wiring against the panel schematic before restoring power.
