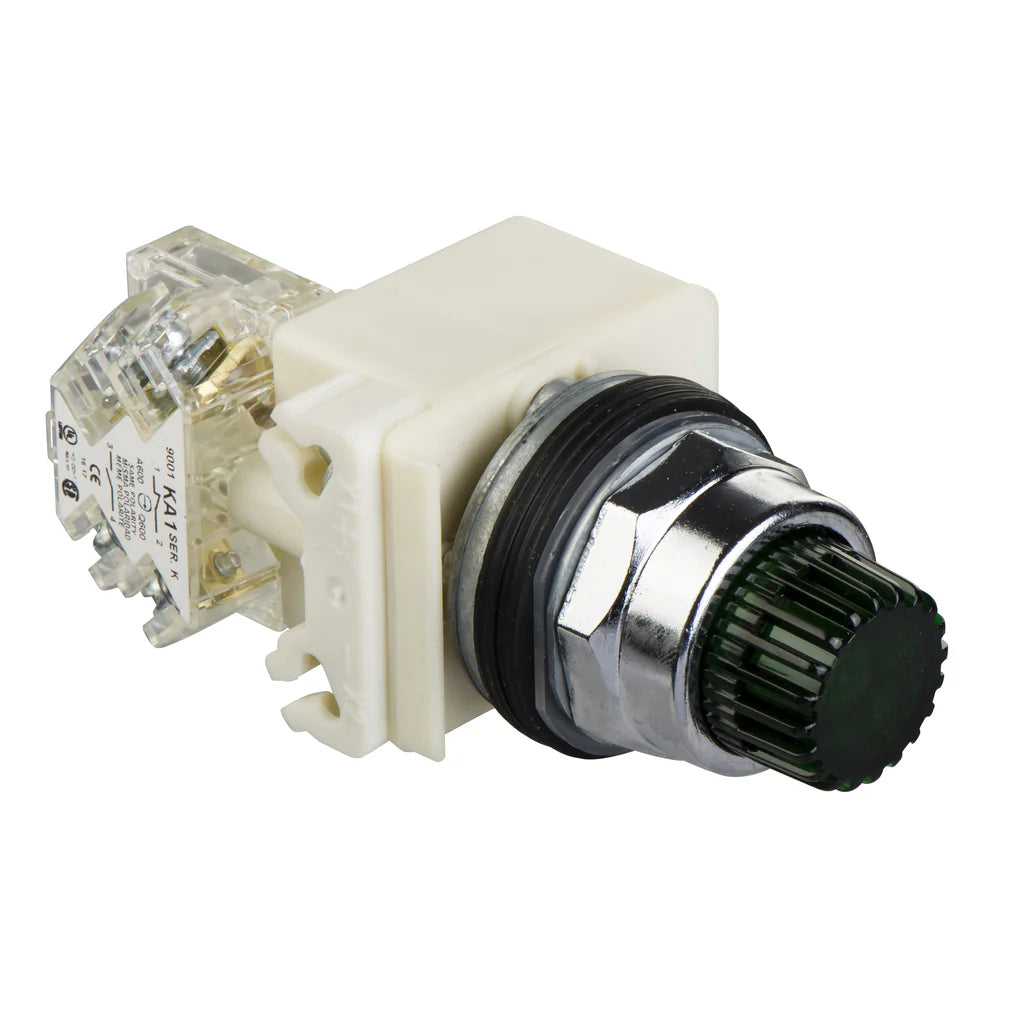

Schneider Electric 9001K2L38LGGH13 Square D 30 mm 10 Amp 600 Volt Push Button

Product Description

The Schneider Electric 9001K2L38LGGH13 is a modular illuminated push button designed for control applications. This push button operates at 10 Amps and 600 Volts, featuring a green projecting head for easy visibility. The push button includes a contact block and is suitable for installation in panels with a thirty millimeter diameter cutout.

• Impact and corrosion resistant metal construction
• IP66 rated for water and dust resistance
• Universal compatibility with traditional screw-clamp connections

Product Highlights

This product provides a reliable and ergonomic interface for machine control.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Link: View Product

Technical Specifications

• Catalog Number: 9001K2L38LGGH13
• Voltage: 120 VAC/VDC
• Amperage: 0.55 Amp 125 V
• Dimensions: Width 54 mm, Height 42 mm
• Weight: 0.37 lb
• Standard: CSA C22.2 No 14, IEC 60947-1
• Operating Temperature: -25 to 70 degrees C
• Environmental Conditions: IP66 rated for harsh environments
