Schneider Electric 9001K2L35LYAH13 SQD Illuminated Push Button 24 Volt AC/DC (30mm) Replacement MPN

Product Description

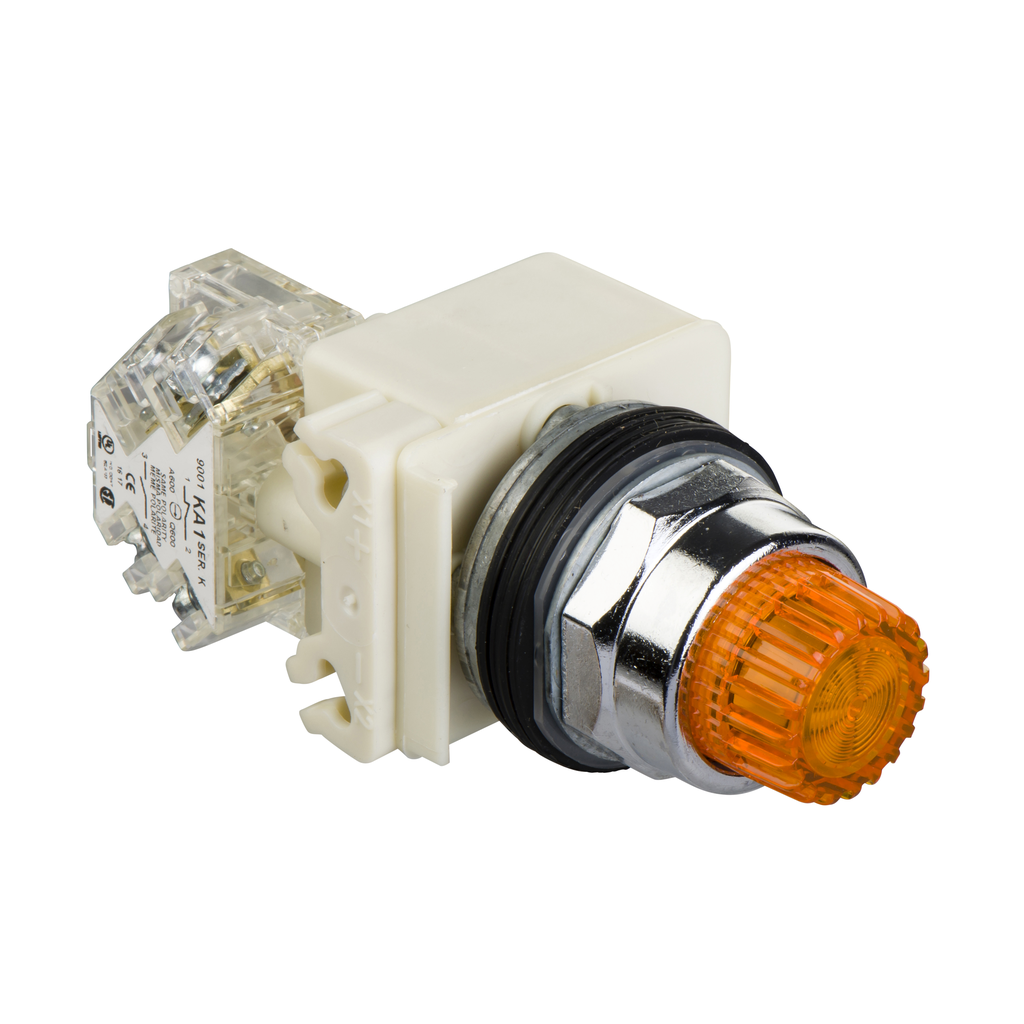

The Schneider Electric 9001K2L35LYAH13 is an illuminated push button designed for use in control and automation systems. It features a modular design with a projecting amber button and an integrated LED light, providing visibility and operability in various lighting conditions. The push button is rated for 24 to 28 volts AC/DC and is intended for installation in standard thirty millimeter panel cutouts.

• Includes a contact block with one normally open (NO) and one normally closed (NC) contact.
• Impact resistant and rated IP66 for dust and water protection.
• Easy installation using screw-clamp connections for reliable circuitry.

Product Highlights

This push button is suitable for use in challenging environments due to its high impact and vibration resistance as well as its durability against dust and moisture. The ergonomic design ensures efficient operation for users, while its luminous feature allows for easy identification.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9001K2L35LYAH13

Technical Specifications

• Size: 1.18 inches
• Height: 42 mm
• Width: 54 mm
• Voltage: 24...28 Volt AC/DC
• Amperage: 10 Amp
• Weight: 0.37 lb
• Color: Amber
• Contact Configuration: 1 C/O
