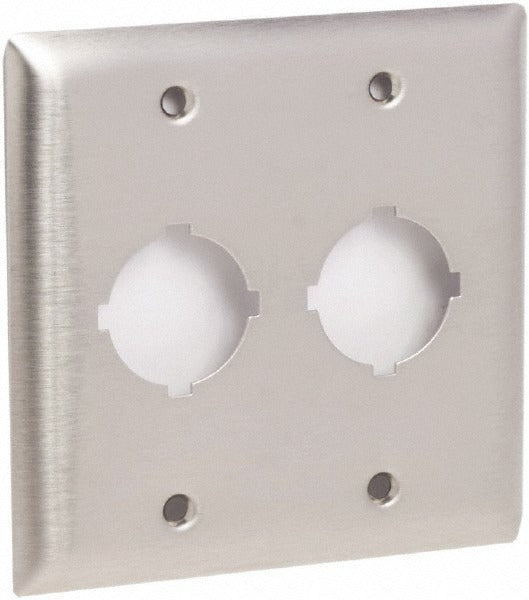

Schneider Electric 9001K26 Flush Plate 30mm Pushbutton

Product Description

The SCHNEIDER ELECTRIC 9001K26 is a stainless steel flush plate designed as a mounting and finishing accessory for 30mm industrial pushbutton operators. It provides a clean, flush-mount appearance for control stations and switch boxes used in industrial and commercial electrical control applications. Constructed from stainless steel, the plate measures 4.5 inches wide, 2.3 inches tall, and 2 inches in depth profile, and weighs 0.42 pounds. Licensed electricians and industrial control panel technicians are the typical installers of this hardware.

The 9001K26 flush plate is used with 2.5-inch deep switch boxes and standard 2 x 3-inch general purpose switch boxes in control station assemblies. It is compatible with Type K, SK, KX, and T operators within the 9001KY and 9001SKY control station families. It fits 30mm pushbutton operators and is commonly found in industrial process control, machine tool, and facility electrical panels where a flush-mounted operator appearance is required.

Key Features

• Stainless steel construction for durability in industrial environments
• Flush-mount design for clean operator panel appearance
• Compatible with 30mm pushbutton operators
• Fits 2.5-inch deep switch boxes and standard 2 x 3-inch general purpose switch boxes
• Works with Type K, SK, KX, and T operators
• Sold individually — package quantity of 1

Compatibility

Designed for use with 9001KY and 9001SKY control stations, 30mm pushbuttons, Type K, SK, KX, and T operators, 2.5-inch deep switch boxes, and standard 2 x 3-inch general purpose switch boxes.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the control circuit before removing or installing any switch box components. Verify that the existing switch box depth and operator type match the specifications for this plate before installation. Do not force-fit the plate onto incompatible operator or enclosure configurations.
