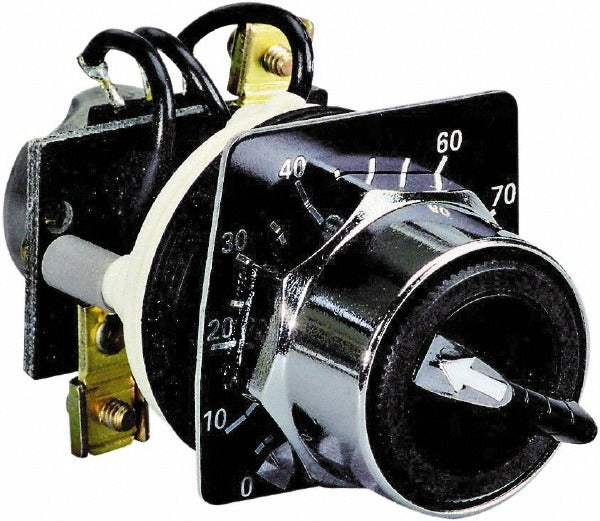

Schneider Electric 9001K2105 Potentiometer 1000 Ohm 30mm

Product Description

The SCHNEIDER ELECTRIC 9001K2105 is a 1,000-ohm panel-mount potentiometer rated for 300 VAC and 2 watts of continuous power dissipation. It features a 30mm mounting hole diameter and is operated by a standard knob, making it a straightforward drop-in control component for industrial and commercial control panels. The unit carries a NEMA 4 and NEMA 13 enclosure rating, meaning the assembly is suitable for environments exposed to dust, splashing water, and oil. Electricians and controls technicians install this type of potentiometer as a variable resistance input for motor speed controllers, lighting dimmers, and analog setpoint adjusters in low-voltage control circuits.

This potentiometer is suited for use in industrial control panels, HVAC variable-speed drive systems, and commercial building automation applications where a manually adjustable resistance signal is required. The non-illuminated knob operator keeps the assembly compact and eliminates the need for a lamp supply circuit. It is intended for flush panel mounting through a 30mm hole, consistent with standard 30mm operator hardware found throughout industrial controls installations.

Key Features

• 1,000-ohm resistance for precise analog setpoint control
• 2-watt power rating supports continuous duty in control circuits
• 30mm mounting hole diameter fits standard industrial panel cutouts
• NEMA 4 and NEMA 13 ratings provide protection against dust, water, and oil ingress
• Non-illuminated knob operator simplifies wiring and reduces component count
• RoHS compliant construction

Compatibility

Designed as an OEM-style replacement or new-installation potentiometer for 30mm industrial control panel operator stations requiring a 1,000-ohm, 2-watt variable resistor rated at 300 VAC.

Installation Notes

Installation should be performed by a licensed electrician or qualified controls technician in accordance with applicable NEC requirements. De-energize and lock out the control panel before mounting or wiring this component. Verify that the circuit voltage and wattage load do not exceed the 300 VAC and 2-watt ratings of this device. Secure the potentiometer through the 30mm panel cutout using the manufacturer-supplied hardware and confirm shaft alignment before tightening.
