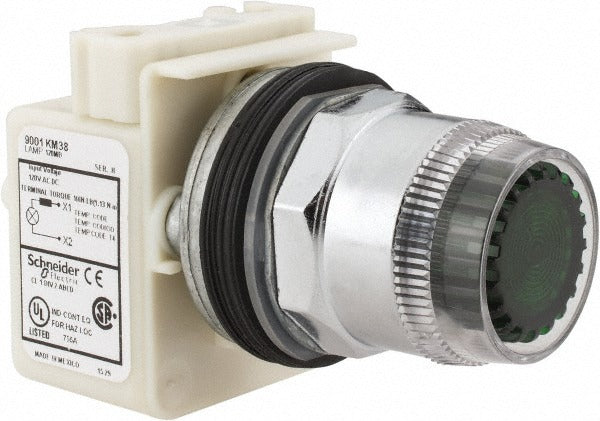

Schneider Electric 9001K1L38G Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001K1L38G is an illuminated momentary push-button switch rated for 600 volts, designed for industrial and commercial control panel applications. It features a 30 mm (1.18 inch) mounting hole diameter and a green, round, extended (straight) operator profile. The switch provides momentary contact operation, meaning it activates only while depressed and returns to its default state upon release. Built to resist environmental ingress, it carries NEMA ratings covering dusttight, oiltight, and watertight environments. Licensed electricians and control panel technicians are the primary installers of this device.

This push-button switch is suited for use in industrial machinery, HVAC control panels, pump control stations, and process equipment enclosures where momentary switching at 600 volts is required. The illuminated green operator gives operators a clear visual indicator of panel status. Its NEMA 4, 4X-class environmental resistance makes it appropriate for both indoor and outdoor installations where washdown or moisture exposure is a concern. The extended round operator style is a common configuration in factory automation and building mechanical systems.

Key Features

• Illuminated green round operator for clear visual status indication
• Momentary operation returns to default state when released
• 600-volt rating suitable for industrial control circuit applications
• 30 mm mounting hole diameter fits standard 30 mm cutout enclosures
• Dusttight, oiltight, and watertight construction for demanding environments
• Extended (straight) operator profile for positive tactile actuation
• Certified to CE, CSA, and UL standards

Compatibility

Designed as a 30 mm panel-mount push-button switch for use in standard 30 mm cutout industrial control enclosures. Confirm operator series and contact block compatibility before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control panel before mounting or wiring this switch. Ensure the panel cutout is 30 mm in diameter and that the enclosure NEMA rating meets or exceeds the environmental conditions of the installation site. Do not exceed the 600-volt rating of the switch in any circuit application.
