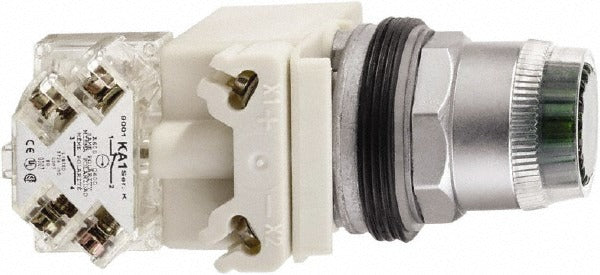

Schneider Electric 9001K1L35RH13 Push-button Switch

Product Description

The SCHNEIDER ELECTRIC 9001K1L35RH13 is an illuminated momentary push-button switch rated for 600 volts and 10 amps. It features a red, round, extended (straight) operator with a 1.18-inch (30 mm) mounting hole diameter and screw terminal connections. Designed for demanding industrial and commercial control panel applications, this switch carries a momentary (MO) contact configuration with both normally closed (NC) and normally open (NO) contacts. Its dusttight, oiltight, and watertight construction makes it suitable for harsh service environments. Licensed electricians and panel builders typically install this type of switch in machine control, HVAC control panels, and industrial enclosures.

This switch is suited for residential, commercial, and light industrial control circuits where a robust, sealed operator is required. The NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings allow installation in indoor and outdoor enclosures exposed to dust, oil, or water ingress. It is a practical choice for motor starter stations, conveyor controls, pump panels, and HVAC equipment requiring illuminated momentary switching. The illuminated operator provides a clear visual indication state at the panel face, reducing troubleshooting time in busy mechanical rooms or equipment areas.

Key Features

• Momentary (MO) operation with NC/NO contact configuration for flexible circuit wiring
• Illuminated red round extended operator for clear visual status indication
• 1.18-inch (30 mm) mounting hole diameter with screw terminal connections
• Rated 600 volts and 10 amps for reliable industrial circuit use
• Dusttight, oiltight, and watertight construction for harsh environments
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated enclosure compatibility

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for control panels and equipment enclosures requiring a 30 mm (1.18-inch) mounting hole and momentary NC/NO contact configuration. Meets Utilization Category AC-15 and DC-13 requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the control panel completely and verify zero voltage with a meter before removing or installing any switch operator or contact block. Screw terminals must be tightened to the enclosure manufacturer and terminal block specifications. Verify the NEMA rating of the host enclosure matches the environment before installation.
