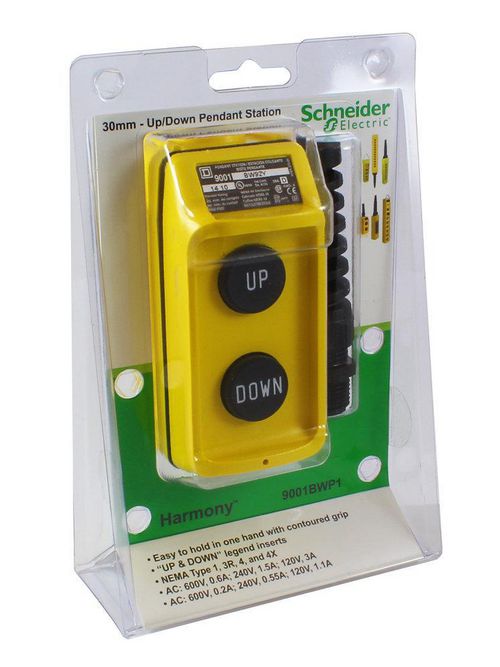

Schneider Electric 9001BWP1 SQD 9001BWP1 BW Pendant Control Station

Product Description

The Schneider Electric 9001BWP1 is a corrosion-resistant pendant control station designed for various industrial applications. This control station offers a durable, ergonomic design to withstand tough environments.

• Features a push button actuator for easy operation.
• NEMA rated for environmental protection.
• Suitable for overhead cranes, lifts, and more.

Product Highlights

The Schneider Electric 9001BWP1 is ideal for use in controlling equipment in demanding environments, ensuring safety and reliability during operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Pendant Control Station

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 5 A
• Operating Temperature: -25 to 60 deg C
• NEMA Rating: NEMA 1/3/3R/4/4X/13
• Material: Die Cast Zinc/High Impact Thermoplastic
• Bezel/Housing: Polycarbonate/PET Polyester Blend
• Connection Type: 1/2 in NPT/Screw Clamp
• Operator Type: Mechanically Interlocked
