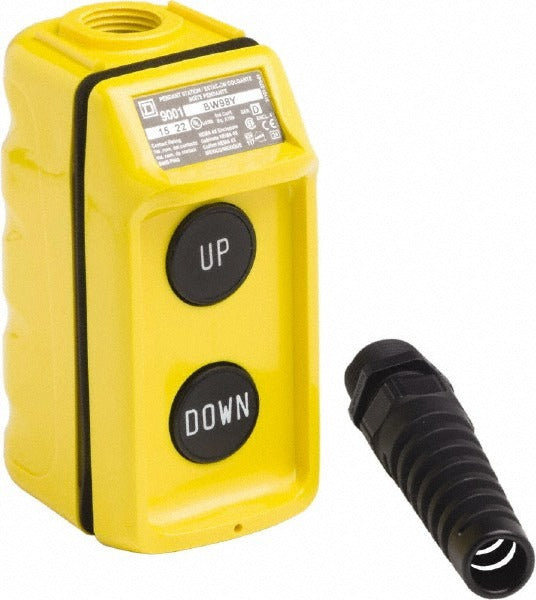

Schneider Electric 9001BW98Y Pendant Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BW98Y is a pendant control station designed for overhead crane, hoist, and material-handling applications. It houses two flush push button operators — one labeled Up and one labeled Down — wired in an 8-normally-open (8NO) momentary contact configuration. The station operates at up to 600 volts AC and is rated at 5 amps, giving it solid overhead capacity for standard industrial control circuits. Yellow coloring follows common safety-color conventions for hoist and lift controls. A cord connector and strain relief are included, reducing the parts count at rough-in. Licensed electricians and industrial maintenance technicians are the typical installers.

This pendant control station is suited for residential freight lifts, commercial hoists, overhead cranes, and similar vertical-motion equipment where momentary push-to-operate control is required. The mechanical interlock style prevents simultaneous Up and Down commands, protecting motor and drive components from opposing-direction faults. The flush button design minimizes accidental actuation in busy shop environments. Two-operator pendant stations in this form factor are common on single-phase and three-phase hoist circuits in manufacturing facilities, warehouses, and machine shops.

Key Features

• 8NO momentary contact configuration supports standard hoist and crane control wiring schemes
• Flush push button operators reduce inadvertent activation in high-traffic work areas
• Mechanical interlock prevents simultaneous Up and Down commands
• Yellow housing follows industrial safety-color standards for lift and hoist controls
• Includes cord connector and strain relief for simplified field installation
• Rated 600 volts AC at 5 amps for compatibility with common industrial control voltages

Compatibility

Designed as an OEM-style replacement pendant control station for industrial hoist, crane, and vertical-lift control circuits requiring a 2-operator, 8NO momentary configuration at up to 600 volts AC.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the hoist or crane circuit completely before disconnecting the existing pendant station or making new connections. Verify that the replacement station voltage and amperage ratings match the existing control circuit before energizing. Inspect the cord connector and strain relief for secure seating after wiring to prevent mechanical stress on internal terminations.
