Schneider Electric 9001BW94Y Pendant Control Station

Product Description

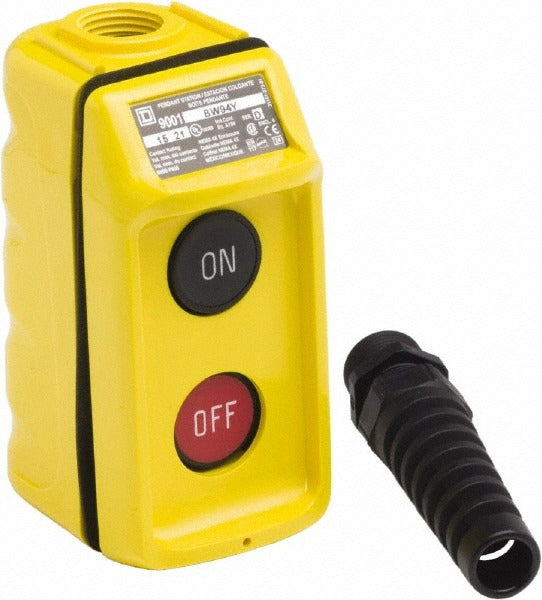

The SCHNEIDER ELECTRIC 9001BW94Y is a maintained-action pendant control station designed for industrial machine control applications. It houses two flush push button operators configured in a 2NO/2NC contact arrangement, providing On and Off switching in a single enclosure. Rated for 600 volts AC at 5 amps, the station meets NEMA 1, 3, 3R, 4, and 4X enclosure standards, making it suitable for both indoor and outdoor environments where moisture and dust resistance are required. The yellow housing aids in visual identification on the shop floor. A cord connector and strain relief are included to support pendant-style hanging installations.

This pendant control station is used in manufacturing, material handling, and industrial automation settings where operators need handheld control of motors, hoists, conveyors, or similar equipment. The maintained contact action means the switch holds its state after actuation, suitable for sustained run/stop control cycles. It is typically installed by licensed electricians or qualified industrial maintenance personnel in compliance with applicable NEC requirements.

Key Features

• Maintained-action switching for sustained On/Off control
• 2NO/2NC contact configuration for versatile circuit wiring
• Flush push button operators reduce accidental actuation
• NEMA 1, 3, 3R, 4, and 4X ratings for indoor and outdoor use
• Rated 600 volts AC at 5 amps for compatibility with standard industrial control circuits
• Includes cord connector and strain relief for pendant hanging
• Yellow enclosure for high-visibility identification

Compatibility

Designed as an OEM-style replacement or direct-install pendant control station for industrial control systems requiring a maintained 2-operator flush push button station with NEMA 4X-rated enclosure protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any wiring connections. Ensure the cord connector and strain relief are properly secured to prevent tension on internal wiring. Verify that the enclosure rating matches the environmental conditions of the installation location before mounting.
