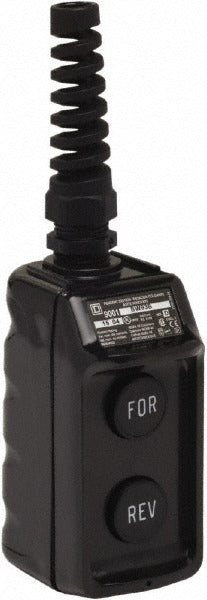

Schneider Electric 9001BW93B Pendant Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BW93B is a pendant control station designed for momentary-contact, forward-reverse motor control applications. It houses two flush push button operators in a black enclosure rated NEMA 4, making it suitable for washdown or outdoor service environments. The station features a 4NO contact configuration with mechanical interlock between the forward and reverse operators to prevent simultaneous engagement. Rated at 5 amps and 600 volts AC, this unit handles the electrical demands of standard industrial motor starter circuits. A cord connector and strain relief are included, simplifying field wiring and protecting the cable at the entry point. Licensed electricians and industrial maintenance technicians are the primary installers.

This pendant control station is used in industrial and commercial settings where an operator needs hands-on, remote control of a motor drive or starter from a hanging position. Common applications include bridge cranes, hoists, conveyor systems, and material handling equipment. The forward and reverse legend markings are factory-applied. The mechanical interlock provides a hardware-level safeguard against direction conflicts without relying solely on control circuit logic. Its NEMA 4 enclosure rating makes it appropriate for both indoor and outdoor use where water splash or hose-directed water may be present.

Key Features

• Momentary-contact operation for forward and reverse motor control
• 4NO contact configuration with mechanical interlock between operators
• NEMA 4 rated enclosure suitable for washdown and outdoor environments
• Flush push button operators with factory-applied Forward and Reverse legend markings
• Includes cord connector and strain relief for secure cable termination
• Rated 5 amps at 600 volts AC for compatibility with standard industrial control circuits

Compatibility

Designed as an OEM-style replacement or direct-install pendant control station for industrial motor starter and crane hoist control applications requiring a 2-operator, forward-reverse, momentary-contact pendant.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the motor control circuit before wiring or replacing the pendant station. Verify that the cord connector and strain relief are properly seated to maintain the NEMA 4 enclosure integrity after wiring. Confirm contact ratings are compatible with the downstream motor starter coil and control circuit voltage before energizing.
