Schneider Electric 9001BW92YY236 Pendant Control Station

Product Description

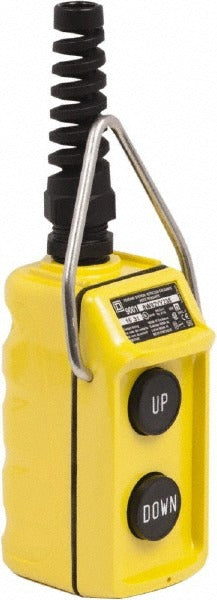

The SCHNEIDER ELECTRIC 9001BW92YY236 is a momentary pendant control station designed for industrial hoist, crane, and material-handling applications. It features two flush push button operators — labeled Up and Down — with a 4NO contact configuration and mechanical interlock. Rated for 600 volts AC and 5 amps, the station is housed in a yellow enclosure with a NEMA 4 rating, making it suitable for wet or washdown environments. A cord connector and strain relief are included. Licensed electricians and industrial maintenance technicians are the typical installers for this type of control device.

This pendant control station fits residential and light commercial overhead equipment as well as heavier industrial hoists and cranes where a two-operator momentary pushbutton station is required. The yellow color aids visibility on the shop floor. The NEMA 4 enclosure rating means the station can handle windblown dust and rain, splashing water, and hose-directed water, making it appropriate for both indoor and outdoor service environments. The included cord connector and strain relief simplify field wiring and protect the cable entry point.

Key Features

• Momentary action with 4NO contact configuration for safe, positive control
• Mechanical interlock prevents simultaneous Up and Down activation
• NEMA 4 rated enclosure suits wet and washdown environments
• Rated 600 volts AC at 5 amps for broad industrial compatibility
• Yellow housing improves operator visibility in busy work areas
• Cord connector and strain relief included for field-ready installation

Compatibility

Designed as an OEM-style replacement or new-installation pendant control station for industrial hoist, crane, and material-handling control systems requiring a 2-operator, momentary, NEMA 4 pendant station.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before wiring the control station. Secure the cord connector and strain relief properly at the cable entry to prevent mechanical stress on internal wiring. Verify contact configuration and interlock operation before returning the equipment to service.
