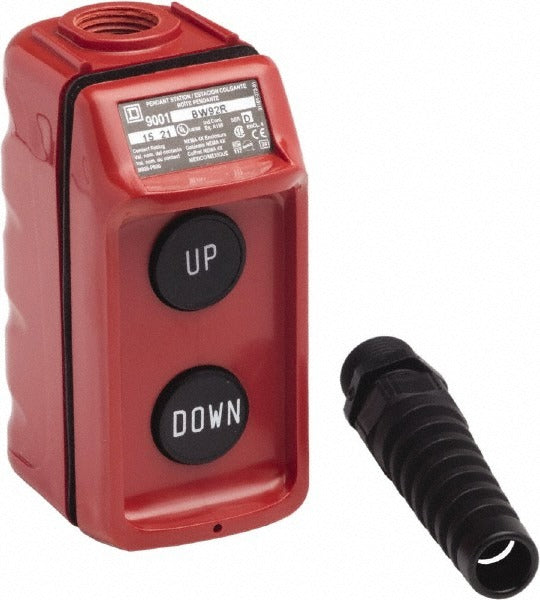

Schneider Electric 9001BW92R Pendant Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BW92R is a momentary pendant control station designed for industrial crane, hoist, and material handling applications. It houses two flush push button operators — labeled Up and Down — in a rugged enclosure rated NEMA 1, 3, 3R, 4, and 4X. The contact configuration is 4NO (four normally open contacts), rated at 5 amps and 600 volts AC. A mechanical interlock style and included cord connector with strain relief make this a ready-to-install pendant drop unit. Electricians and industrial maintenance technicians install this type of station as a direct operator-interface device on overhead equipment control circuits.

The 9001BW92R is suited for use in residential, commercial, and industrial environments where operators need a suspended, handheld control point for directional machine movement. Its NEMA 4 and 4X ratings make it appropriate for wash-down or corrosive-atmosphere installations in addition to standard indoor and outdoor duty. The red color provides visual identification on the shop floor. The cord connector and strain relief are included, supporting a complete pendant drop assembly without additional hardware.

Key Features

• Momentary action with 4NO contact configuration rated 5 amps at 600 volts AC
• Two flush push button operators with Up and Down legend markings
• Mechanical interlock style for reliable directional control
• NEMA 1, 3, 3R, 4, and 4X ratings cover indoor, outdoor, and wash-down environments
• Includes cord connector and strain relief for pendant drop assembly
• Red enclosure for quick visual identification in industrial settings

Compatibility

Designed as an OEM-style replacement or new-installation pendant control station for industrial crane, hoist, and material handling control circuits requiring momentary 4NO operator interface.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the controlled machine before wiring the pendant station. The included cord connector and strain relief must be properly secured to prevent mechanical stress on internal wiring connections. Verify the supply circuit amperage and voltage do not exceed the 5-amp, 600-volt AC ratings of the device before energizing.
