Schneider Electric 9001BW92B Pendant Control Station

Product Description

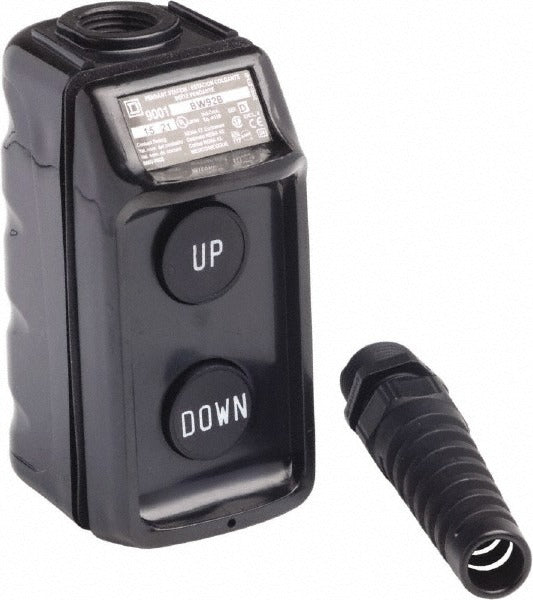

The SCHNEIDER ELECTRIC 9001BW92B is a pendant control station designed for momentary-action crane, hoist, and material-handling control applications. It houses two flush push button operators configured with 4 normally open (4NO) contacts and mechanical interlocking, labeled Up and Down for directional control. Rated at 600 volts AC and 5 amps, this station delivers dependable performance in demanding environments. The enclosure carries NEMA ratings of 1, 3, 3R, 4, and 4X, making it suitable for both indoor and outdoor installations where moisture, dirt, and corrosion resistance are required. Cord connector and strain relief hardware are included.

This pendant control station is used in industrial and commercial settings where an operator needs direct, hands-on directional control of hoists, cranes, lifts, or similar overhead equipment. The momentary contact action means the circuit is active only while the button is pressed, providing inherent safety for load movement. The flush button design reduces the risk of accidental activation. The black housing and compact form factor suit overhead pendant mounting from a cable or conduit drop. It is typically installed by licensed electricians or qualified industrial maintenance technicians.

Key Features

• Momentary-action flush push buttons for directional Up and Down control
• 4NO contact configuration with mechanical interlock between operators
• Rated 600 volts AC at 5 amps for broad industrial circuit compatibility
• NEMA 1, 3, 3R, 4, and 4X ratings for indoor and outdoor wet or corrosive environments
• Includes cord connector and strain relief for secure pendant cable termination
• Black enclosure with two-operator layout in a compact housing

Compatibility

Designed as an OEM-style replacement or direct-installation pendant control station for industrial hoist and crane control circuits requiring momentary 4NO dual-operator pushbutton stations with NEMA 4X-rated enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control circuit before wiring or replacing the pendant station. Ensure the cord connector and strain relief are properly secured to prevent tension from reaching internal wiring terminations. Verify the enclosure NEMA rating is appropriate for the installation environment before mounting.
