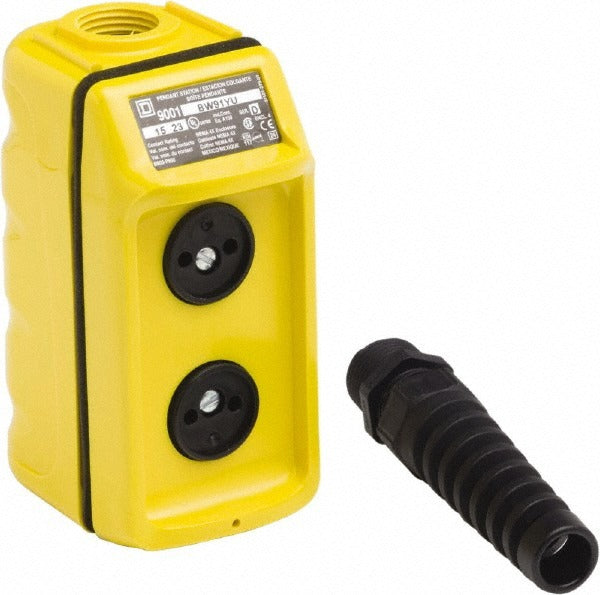

Schneider Electric 9001BW91YU Pendant Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BW91YU is a pendant control station designed for momentary pushbutton operation in industrial and commercial electrical control applications. The unit houses two flush push button operators with a 4NO/4NC contact configuration, allowing independent normally-open and normally-closed switching in a single compact enclosure. Rated for up to 600 volts AC at 5 amps, it provides reliable operator-level control of motor starters, hoists, conveyors, and similar driven equipment. The yellow enclosure aids visibility in busy plant environments. A cord connector and strain relief are included to support pendant-style hanging installations.

This pendant control station is suited for use in industrial plants, manufacturing facilities, and commercial mechanical rooms where an operator needs local, hand-held control of electrical equipment. Its NEMA 1, 3, 3R, 4, and 4X ratings make it appropriate for both indoor dry locations and outdoor or washdown environments. The two-operator, no-legend configuration is common in applications where custom labeling or color-coded button caps are applied in the field. Licensed electricians and industrial maintenance technicians are the typical installers.

Key Features

• Momentary switch action with 4NO/4NC contact configuration for versatile control circuit wiring
• Two flush push button operators in a single pendant enclosure
• Rated to 600 volts AC at 5 amps for compatibility with standard industrial control circuits
• NEMA 1, 3, 3R, 4, and 4X rated enclosure for indoor and outdoor use including washdown environments
• Includes cord connector and strain relief for secure pendant-style installation
• Yellow enclosure for high-visibility identification at the operator station

Compatibility

Designed as an OEM-style replacement or new-installation pendant control station for industrial motor control and conveyor applications requiring momentary pushbutton operation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lockout/tagout all circuits before wiring or mounting the control station. Secure the pendant cord using the included cord connector and strain relief to prevent tension from reaching the internal wiring terminations. Verify contact configuration and circuit wiring against the control schematic before restoring power.
