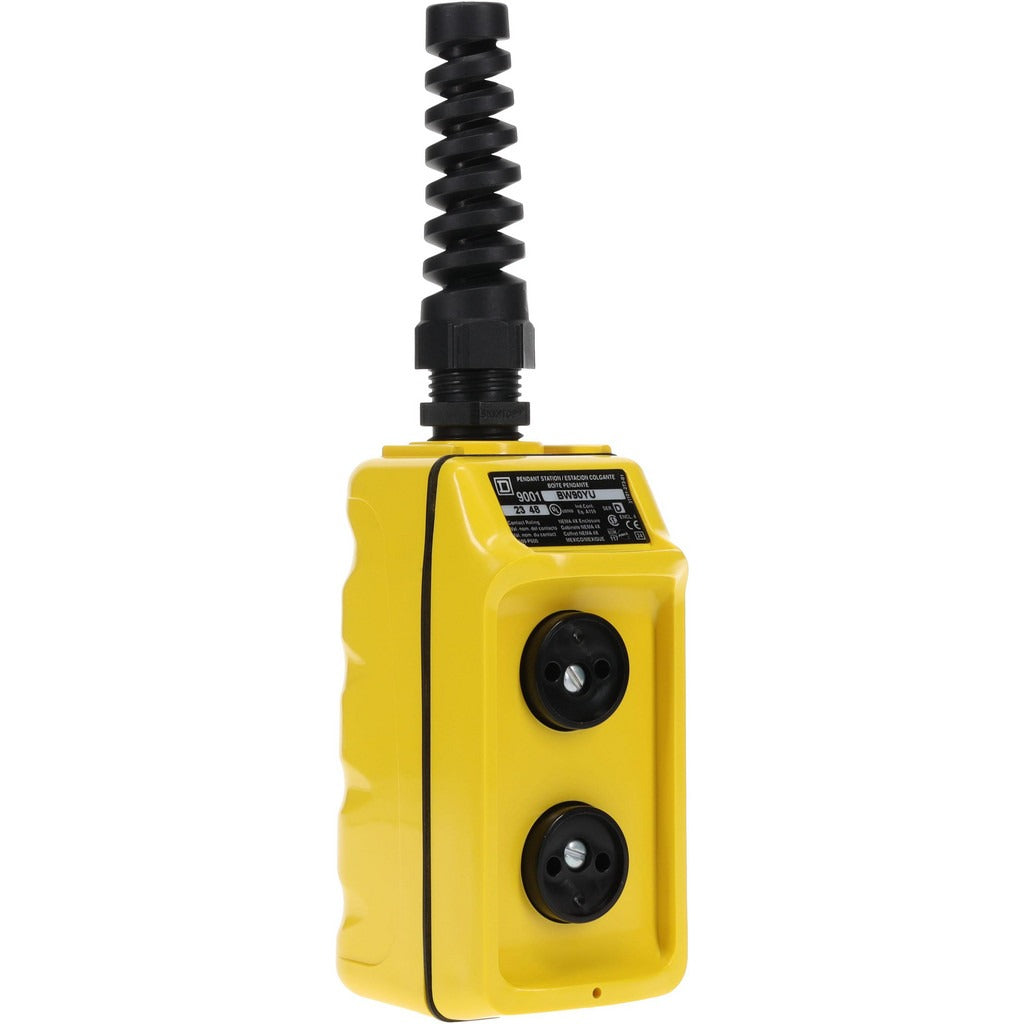

Schneider Electric 9001BW90YU Pendant Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BW90YU is a pendant control station designed for momentary-action pushbutton operation in industrial and commercial electrical control applications. It houses two flush push button operators with a 4NO/4NC contact configuration, providing normally open and normally closed switching in a single enclosure. Rated for up to 600 volts AC and 5 amps, this station is built for reliable low-energy control circuit switching. The yellow enclosure offers high visibility on the floor or overhead crane systems. A cord connector and strain relief are included. Licensed electricians and industrial maintenance technicians are the primary installers for this type of pendant station.

This pendant control station is suited for use in overhead crane controls, hoist systems, machine tool controls, and similar industrial applications where operators require a handheld control point. The NEMA 1, 3, 3R, 4, and 4X ratings make it appropriate for both indoor dry environments and outdoor or washdown locations. The mechanical interlock style supports safe, predictable control sequences. The no-legend configuration allows facilities to apply their own labeling as needed for specific machine operations.

Key Features

• Momentary switch action with 4NO/4NC contact configuration for flexible control circuit wiring
• Two flush push button operators in a single pendant housing
• NEMA 1, 3, 3R, 4, and 4X rated enclosure for indoor and outdoor use including washdown environments
• Rated 600 volts AC at 5 amps for standard control circuit applications
• Yellow high-visibility enclosure with no pre-printed legend for custom labeling
• Includes cord connector and strain relief for secure cable management
• Mechanical interlock style for safe operator sequencing

Compatibility

Designed as an OEM-style replacement or new-installation pendant control station for industrial control systems requiring momentary pushbutton operation with NEMA 4 or 4X environmental protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lockout/tagout the associated control circuit before connecting or replacing the pendant station. Ensure the cord connector and strain relief are properly secured to prevent cable pull-through and mechanical stress on internal wiring. Verify the enclosure NEMA rating matches the environmental conditions of the installation location before mounting.
